Reference speed (final)
Output current
Output voltage
Calculated torque
Reference speed (pre-ramp)
Running direction & status
Cumulative operation time
Number of startups
DC link circuit voltage
Inverter internal air temperature
Heat sink temperature
Input status at terminal
Highlighted when short-circuited;
normal when opened
Input status at terminal via
communications link
Highlighted when 1; normal when 0
Output status at terminal
Highlighted when ON;
normal when OFF
Multiple alarm 2
Multiple alarm 1
Alarm sub-code

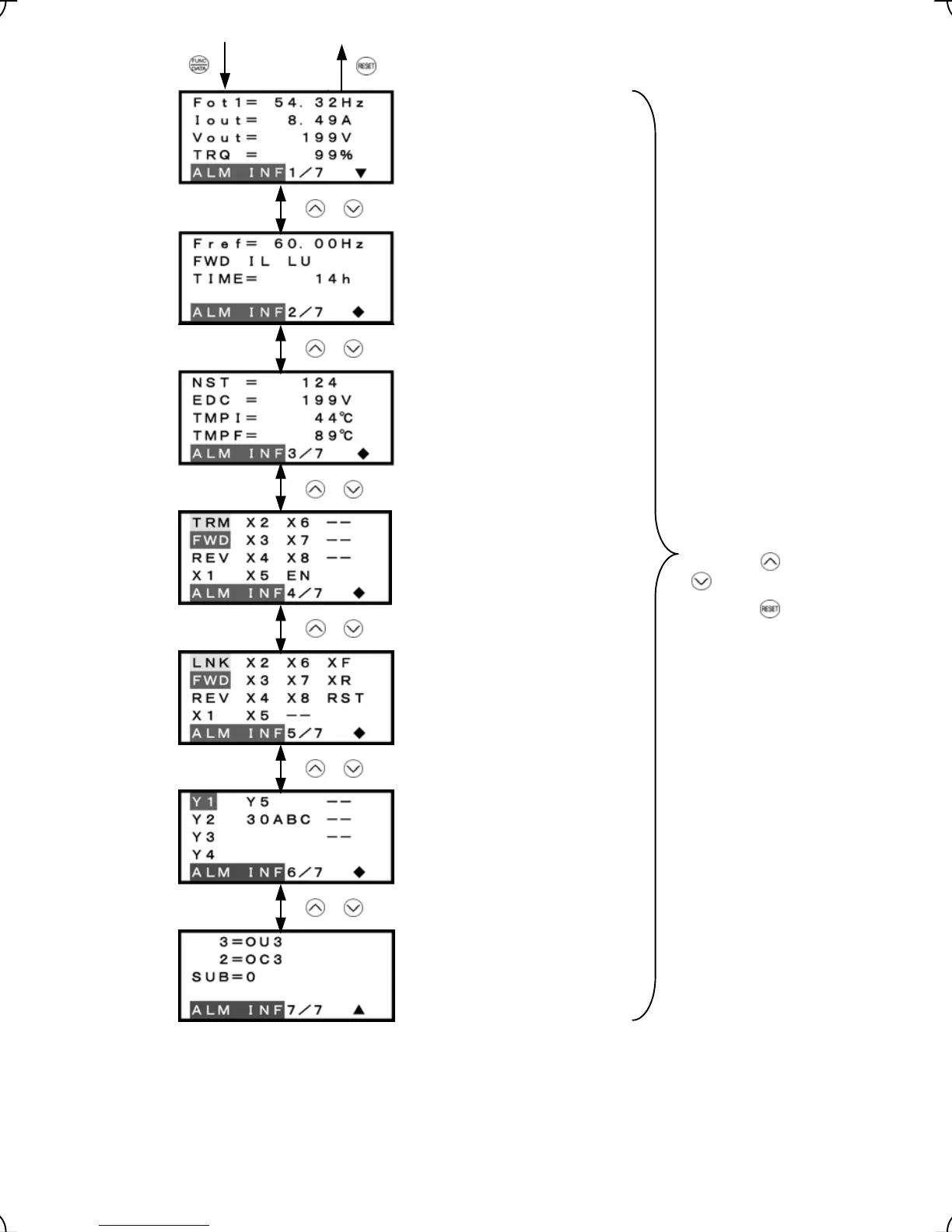

Figure 3.16 Screen Transition for "6. ALM INF" (continued)
/
/
/
/
/
/
Common
operation:
To confirm data,
call the desired
page with
/
keys.
Press the
key to return to
Menu.
3-25
To Next Page
