Magnet pole position tuning
Set function code L03 to the target tuning and press the key.
/
keys to select the target tuning.
Press
/
Wait for a run command.
key to establish the current tuning mode.
Press the
Run command ON
Wait for the completion of tuning.
End of tuning
Run command
OFF
Turn the run command off. (The run command given b
the keypad or the link operation is automatically turned
off.)
Tuning completes. The lead-through on the keypad
ends the tuning process and moves to the next function
code L04.

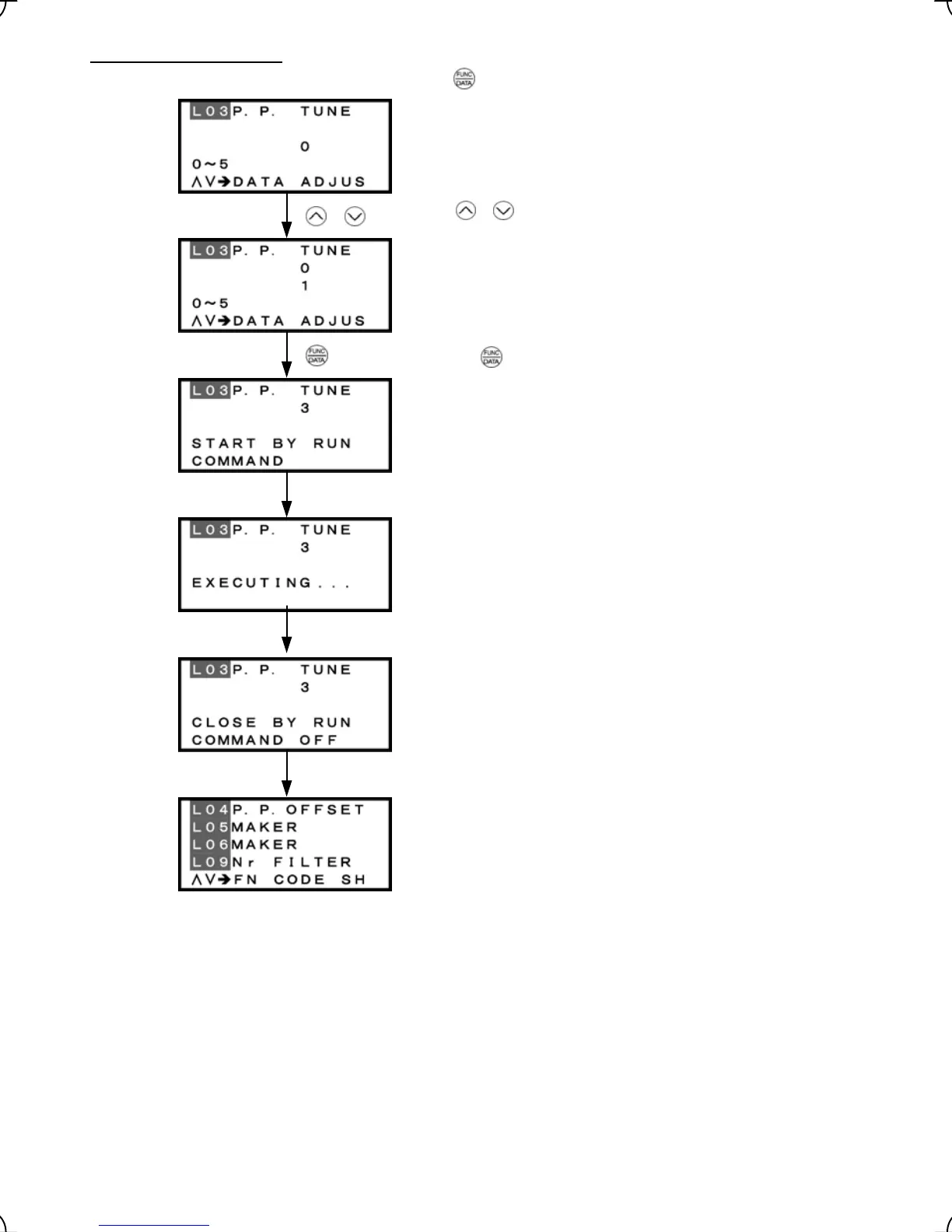

Figure 3.34 Screen Transition for Magnet Pole Position Tuning
The setting range of L03 may vary depending upon the inverter's ROM version. For details about the
setting range, refer to the FRENIC-Lift Instruction Manual (INR-SI47-1038-E).
3-43
