FEC HFC3000 - CC-Link

Chapter 9 External Interface
PAGE 9-12
9-3. CC-Link
The HFC3000 CC-Link System conforms to the open field network CC-Link Ver 2.00. Control of tools and
transaction of message information are executed by communication.
Due to conformance to the open field network CC-Link Ver 2.00 System, connections with a CC-Link Ver 2.0
master station, Ver 1.10/2.00 remote device stations, and Ver 1.10 remote I/O stations are enabled. Also, I/O
communication and message communication can be executed at the same time.

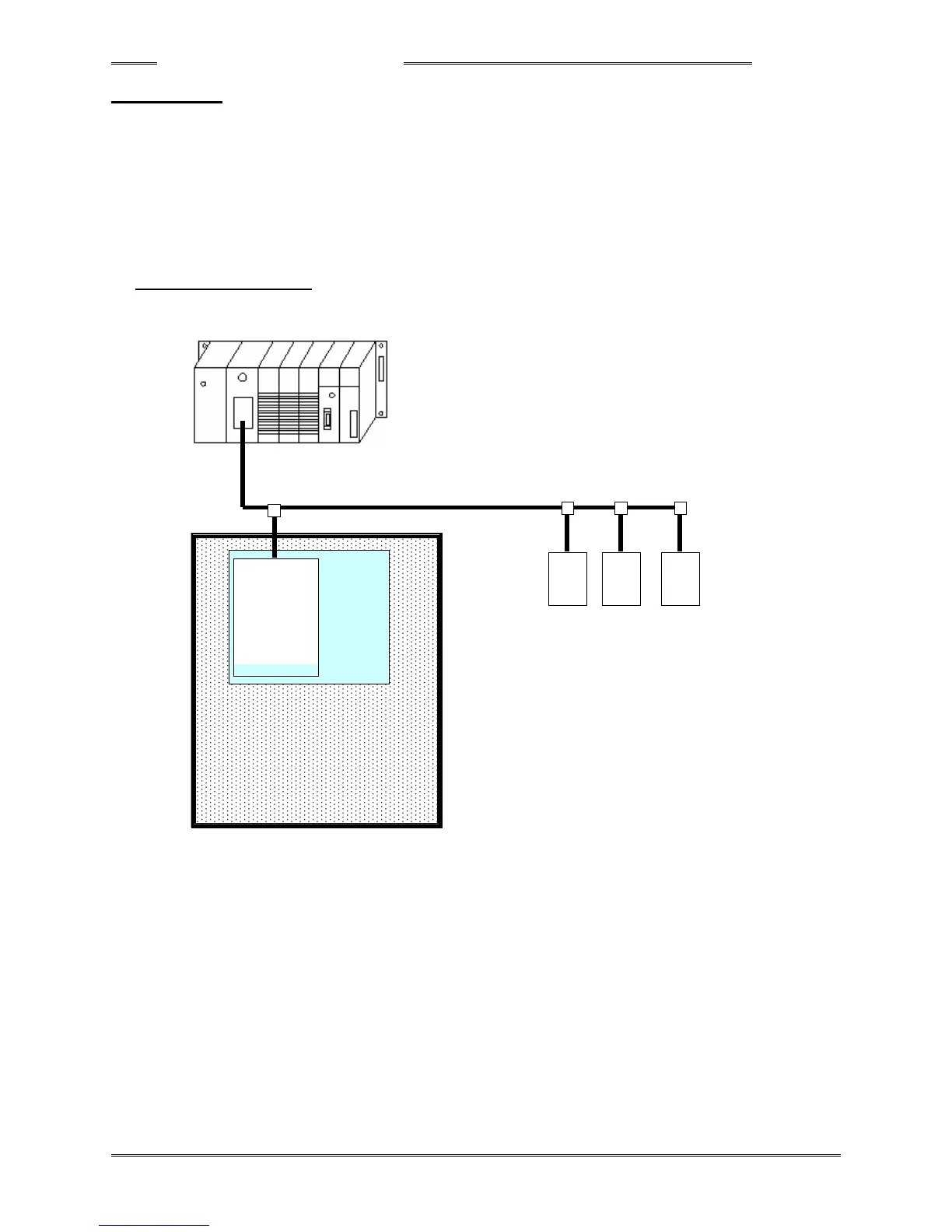

9-3-1 System Structure
HFC3000 CC-Link System
I/O Communication
Message Communication
CC-Link
Ver. 2.00
Remote
Device
Station
CC-Link Ver 1.10/2.00
Remote Device Stations
Ver. 1.10 Remote I/O Stations
PLC (CC-Link Ver 2.00 Master Station)
