FEC HFC3000 - Timing Chart

Chapter 4 Installation
PAGE 4-16

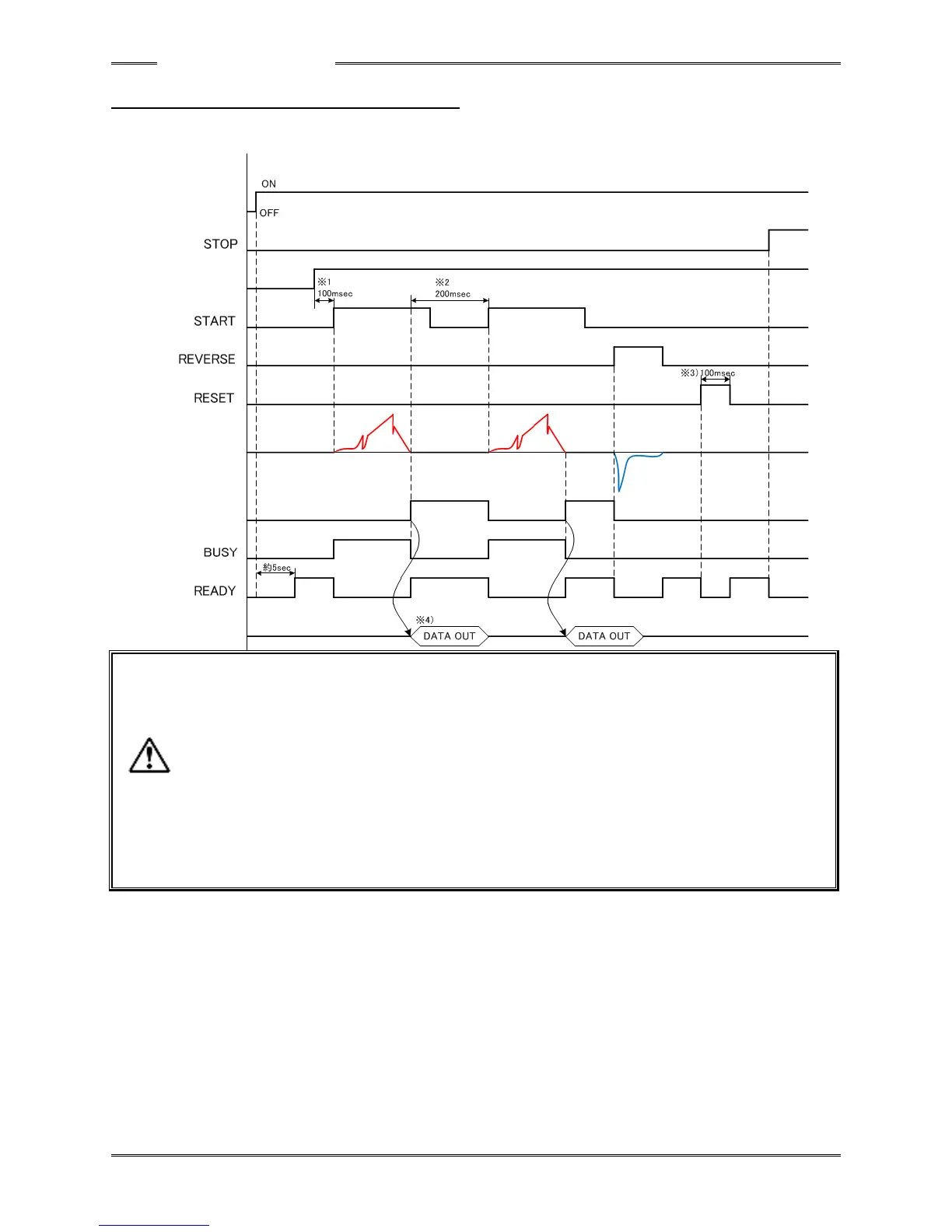

４-５-５ Input/output signal timing chart
●Basic control signals
*1) WORK SELECT requires a response time of 100 msec or more after the READY signal
ON is output until the START signal is input.
*2) After the fastening operation completes, a waiting time of 200 msec or more is
required to input the next START signal. If the START signal is continually input, it may
not be accepted.
*3) To input the RESET signal or the STOP signal, input time of 100 msec or more is
required. If the signal is continually input, it may not be accepted.
*4) When the fastening operation completes, the RS 232C data communication output is
performed only once for approximately 90 msec.
To acquire the fastening result data to a PC, start the communication by the START
signal input timing (BUSY signal ON).
Caution
Input signal
Output signal
RS232C Output
Torque Curve
Axis Judgment
Work Select
Controller Power
