Chapter 9 External Interface
PAGE 9-24
9-5 DeviceNet
The HFC3000 Device Net System conforms to the open field network Device Net. Control of tools and
transaction of message information are executed by Device Net Explicit message communication.
Due to conformance to the open field network Device Net System, connections with Device Net devices
(master/slave) of other manufacturers are enabled.
Also, remote I/O communication and Explicit message communication can be executed at the same time.
9-5-1 System Structure

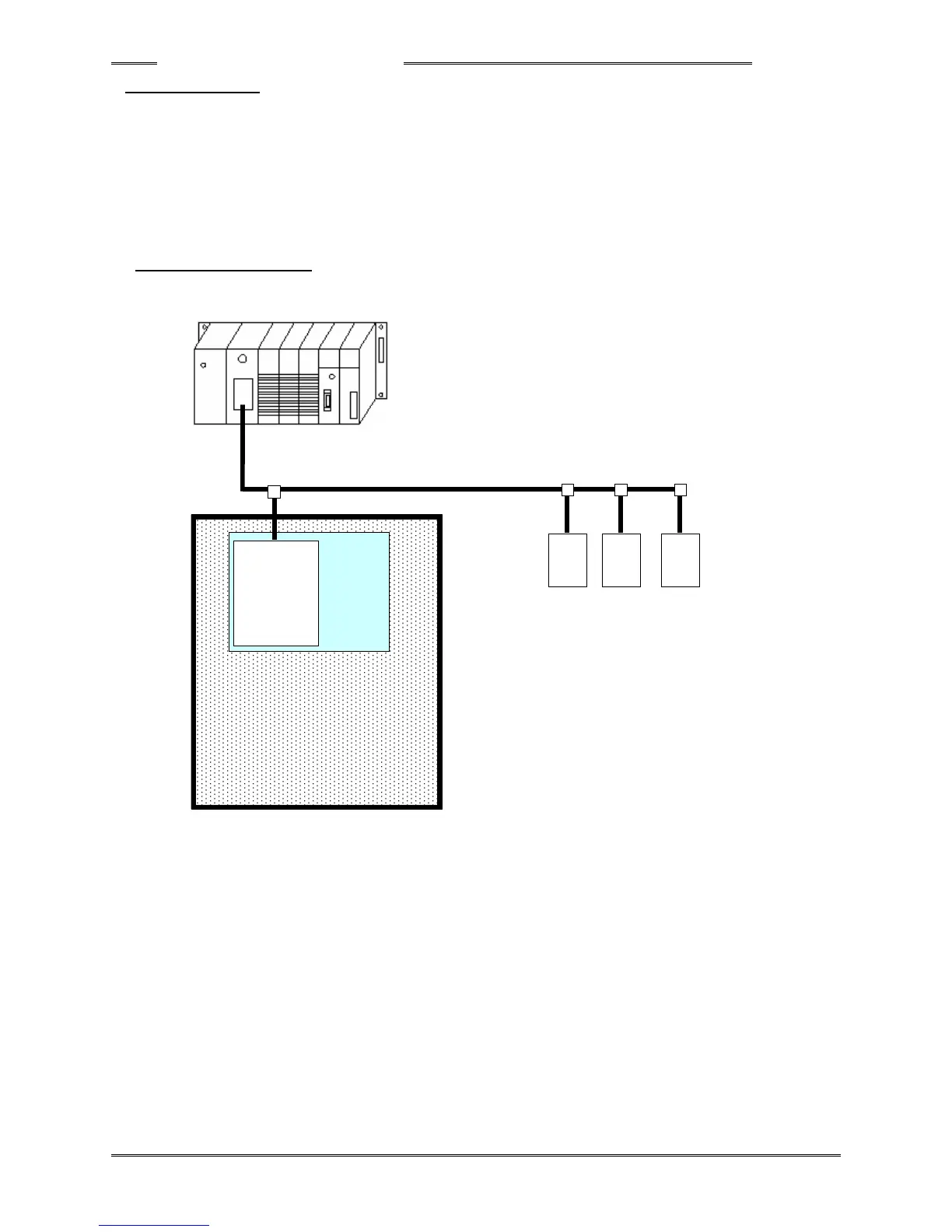

HFC3000 DeviceNet System
Remote I/O Communication
Explicit Message Communication
DeviceNet
Slave
Station
DeviceNet Slave Stations of Other
Manufacturers
PLC (DeviceNet Master Station)
