Chapter 4 Installation
PAGE 4-6

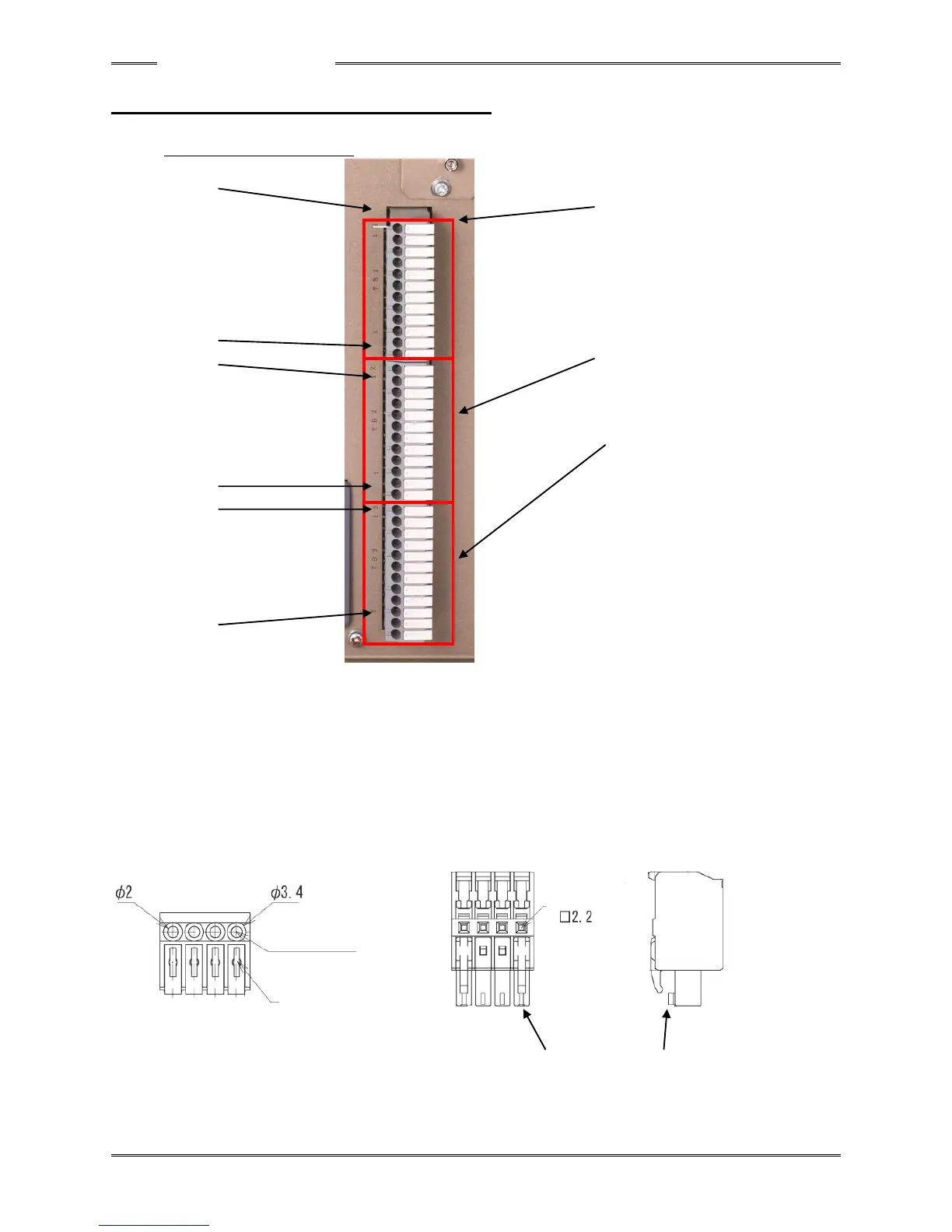

4-5 External Control Signal Connection
DI0 Terminal Block: TB1,2,3
TB3 12
TB3: 12 terminals
*The No. 11 terminal at the plug side lacks a
projection.
TB3 1
TB2 12 TB2: 12 terminals
TB1: 12 terminals
TB2 1 *The No. 1 terminal at the plug side lacks a
projection.
TB1 12
TB1 1
Connector Model: ML-4000-CWSH-12PGY
Manufacturer: SATO PARTS
Rated applicable wire: Solid wire 0.8mm φ (AWG 20), stranded wire 0.5mm
2
(AWG 20)
Range of useable wires: Solid wire 0.4mm φ ~ 1.2mm φ (AWG 26 ~ AWG 16)
Stranded wire 0.2mm
2
to 1.25mm
2
(AWG 24 ~ AWG 16)
Wire outer diameter 0.18mm φ or more
Standard wire stripping length: 9mm
Note: One wire is connected to one terminal. Do not connect two or more wires to one terminal.
The No. 1 TB1 plug does not have a projection.
The No. 11 TB3 plug does not have a projection.
