9-4 PROFIBUS DP-V1
The HFC3000 PROFIBUS DP-V1 System conforms to the open field network PROFIBUS DP-V1. Control of
tools and transaction of message information are executed by cyclic I/O communication and acyclic message
communication. Due to conformance to the open field network PROFIBUS DP-V1 system, connections with
PROFIBUS DP-V1 devices (master/slave) of other manufacturers are enabled.
Also, cyclic I/O communication and acyclic message communication can be executed at the same time.

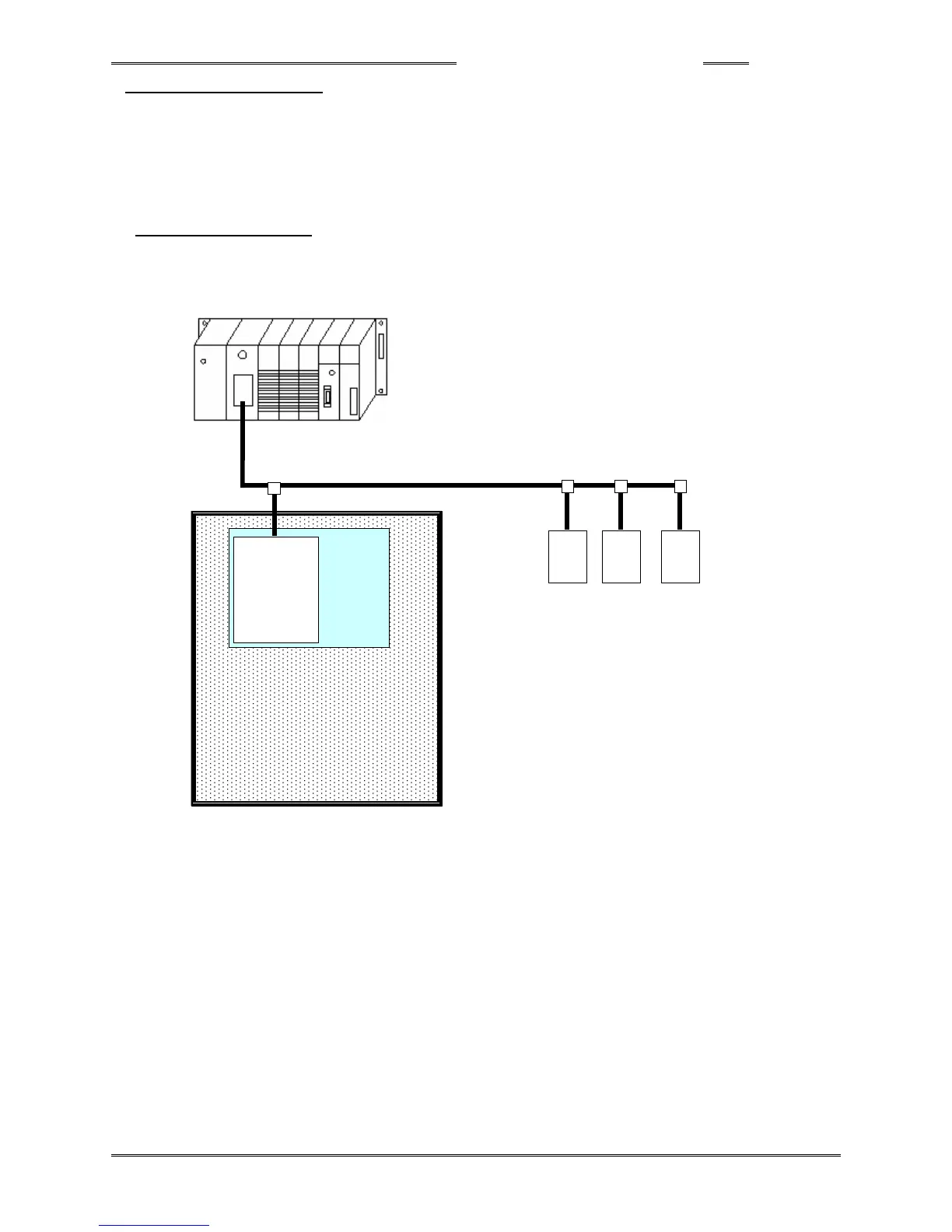

9-4-1 System Structure
HFC3000 PROFIBUS DP-V1 System
Acyclic Message Communication
PROFIBUS
DP-V1
Slave Station
PROFIBUS DP-V1 Slave Stations of Other
Manufacturers
Cyclic I/O Communication
PLC (PROFIBUS DP-V1 Master Station)
