Chapter 9 External Interface
PAGE 9-17
MELSEC-Q Series Parameter Setting

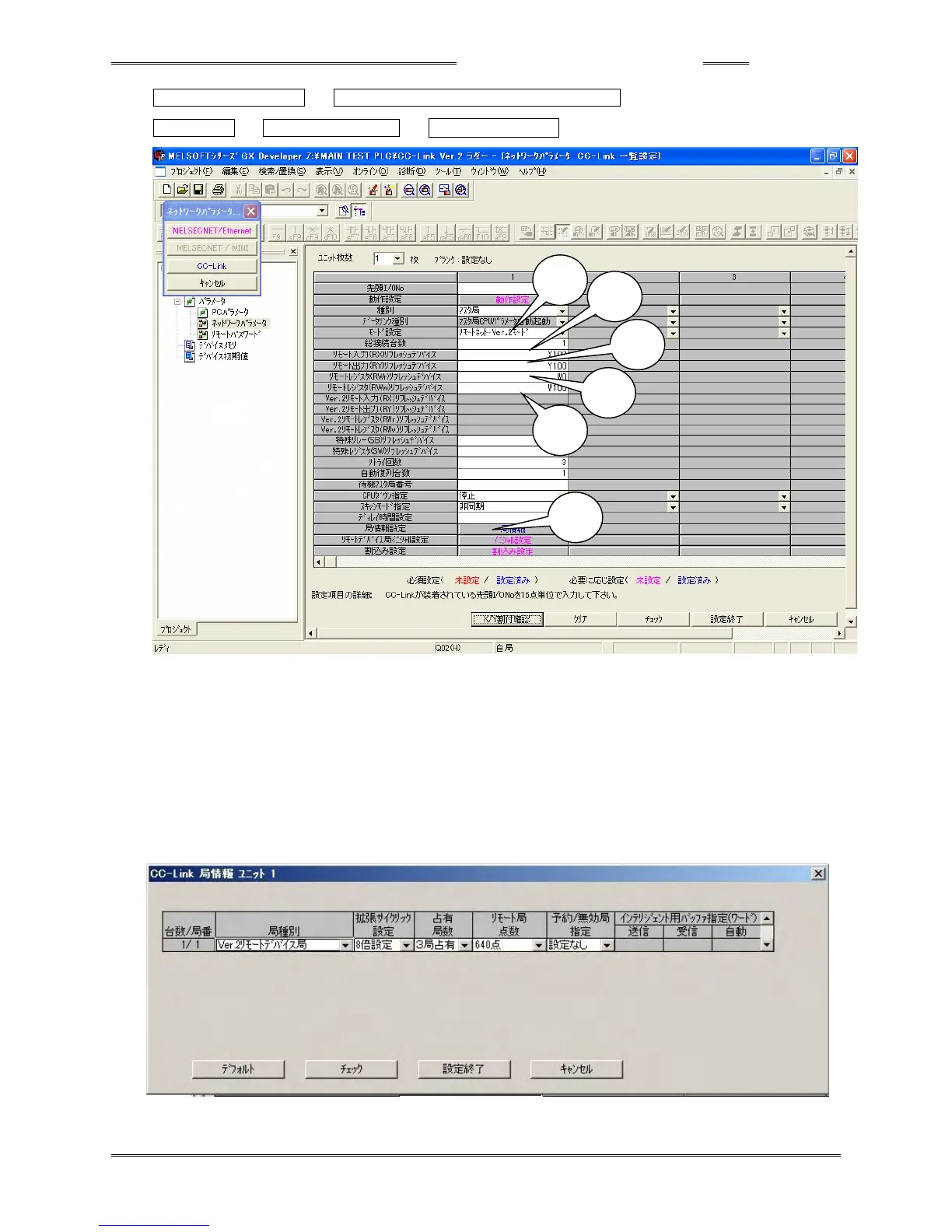

Startup GX Developer Prepare PC Series QCPU (Q mode) Project
Parameter Network Parameter Set List of CC-Link
1. Select “Remote Net (Ver. 2 Mode)” at Mode Select.
2. Set the All Connect Count (3) for number of connected Remote Device stations
3. Set the refresh device Remote Input (X100) / Output (Y100) at “Remote Output (RX / RY).”
4. Set the refresh device Remote Register read (D1000) at “Remote Register (RWr).”
5. Set the refresh device Remote Register write (D4000) at “Remote Register (RWw).”
* The allocated set values differ according to the station No. of the Controller used.
6. Set the station information at Station Information Setting (the picture below shows an example forreference).
To Next Page
