Chapter 9 External Interface
PAGE 9-22
9-4-4 I/O Signal Specifications
I/O Input/Output
Message Input/Output
AXIS to PLC
PLC to AXIS
AXIS to PLC
PLC to AXIS
Maximum
Setting
32 bytes (256 points)
32 bytes (256 points)
4096 bytes
32bytes
Standard
Setting
8 bytes (64 points)
16 bytes (128 points)
200bytes
32 bytes

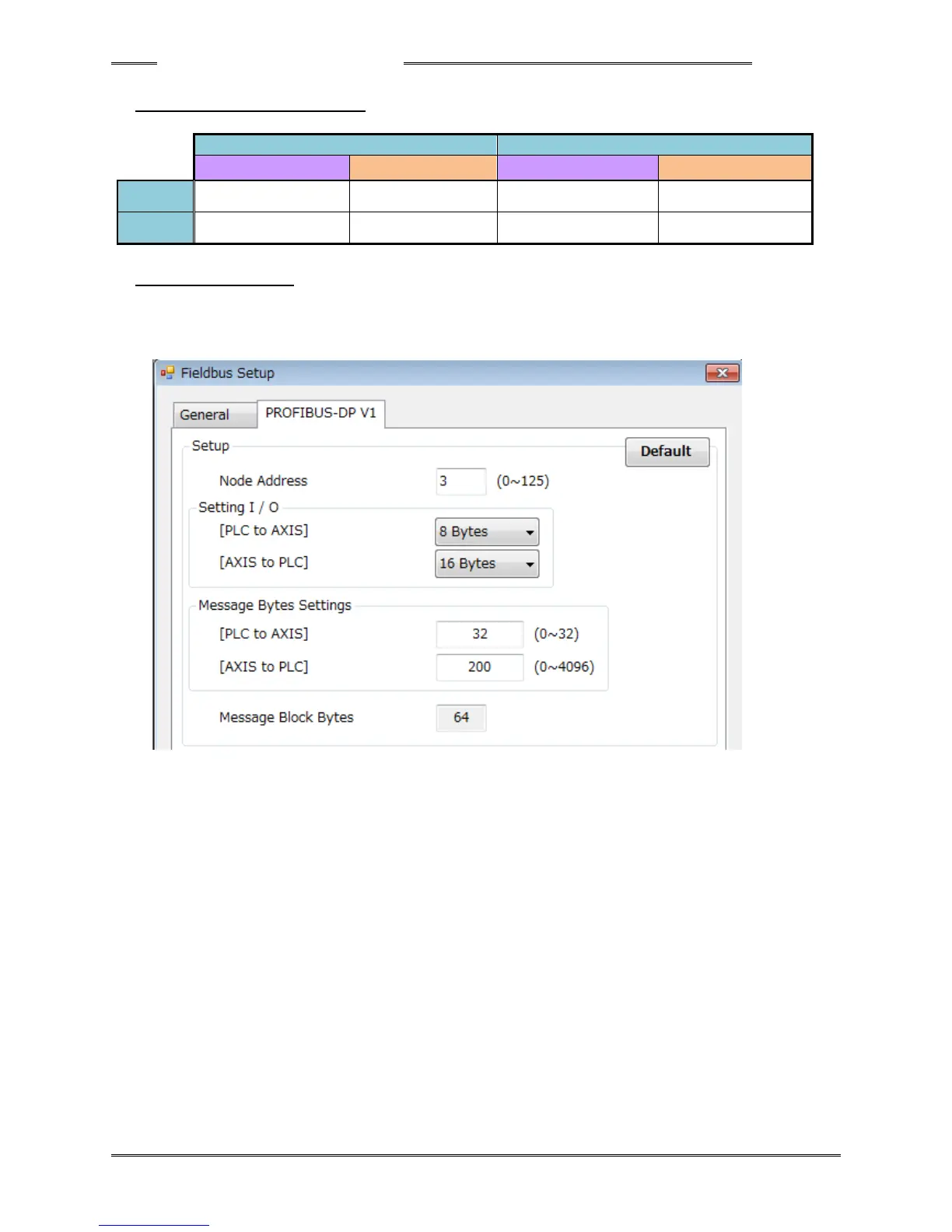

9-4-5 Fieldbus Setup
In the PROFIBUS DP-V1 tab, setting of the Anybus-CompactCom PROFIBUS DP-V1 is performed. The
node address, the I/O settings, and the message settings can be changed.
●Default (the settings are set to the factory settings)
・Node Address: 3
・Setting I/O [PLC to Axis]: 8bytes[64bits]
・Setting I/O [Axis to PLC]: 16bytes[128bits]
・Message Bytes Settings[PLC to Axis]: 32bytes
・Message Bytes Settings [Axis to PLC]: 200bytes
* Message Block Bytes is fixed at 64 bytes.
●Node Address
Setting range: 0 ~ 125
●Setting I/O
・[PLC to Axis]
Setting range: 2bytes [16bits] ~ 8bytes [64bits]
・[Axis to PLC]
Setting range: 2bytes [16bits] ~ 32bytes [256bits]
