OUTDOOR UNIT INSTALLATION
Locating the outdoor unit
• Locate the outdoor unit where the air flow around it will not
be obstructed
• Check that the base is level and does not exceed the maximum
slope of five degrees
• Secure the unit to a base with anchor bolts to reduce
vibrations and noise
• Allow adequate space to access the unit for service and
maintenance

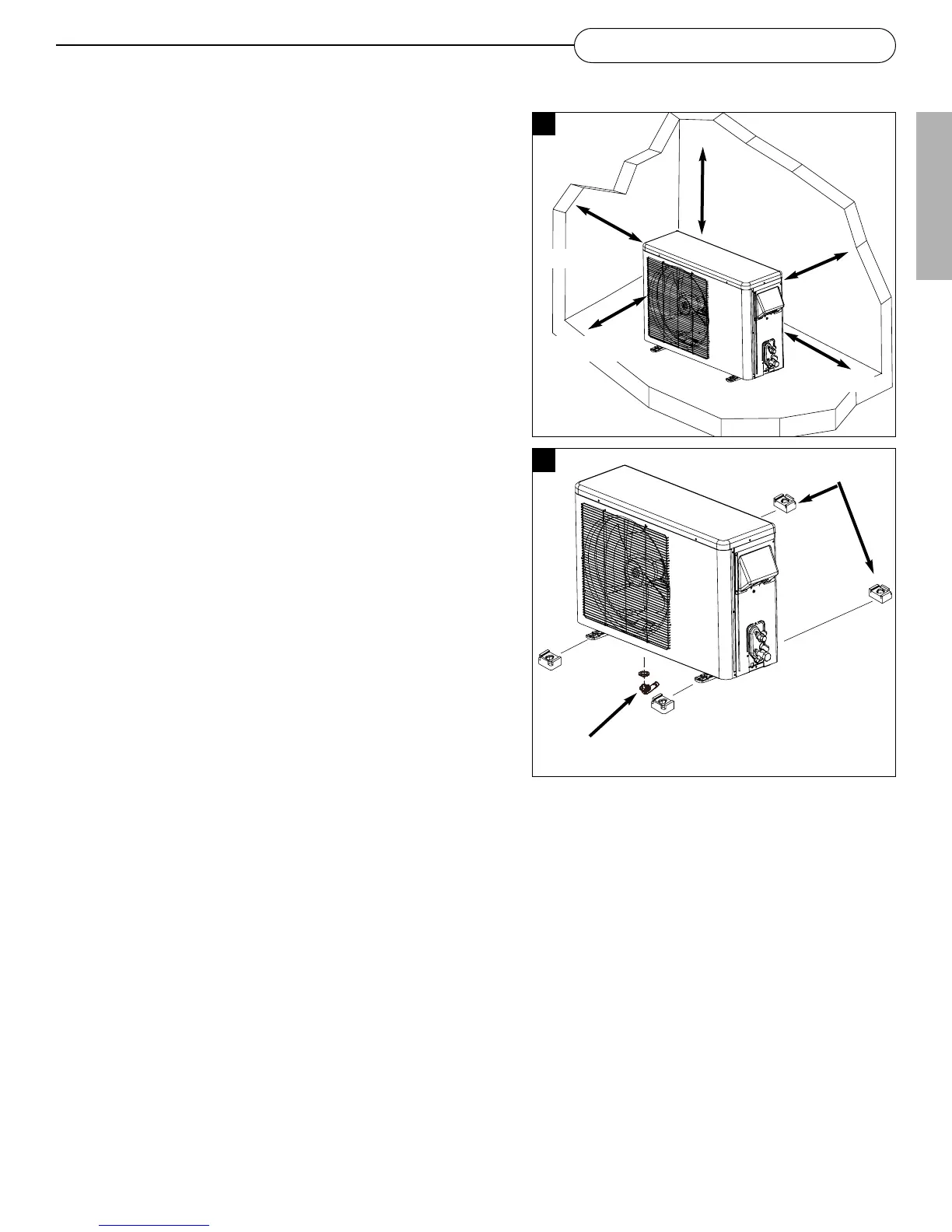

• Maintain a minimum distance around the unit as shown in
figure 12
• Do not install the unit near a heat source, steam source or
flammable gas
• Heatpump units should be mounted above the snow line,
if possible
Installing the outdoor unit
• Attach the base leg dampers by sliding the damper slots onto
the base of the outdoor unit as shown in figure 13
• Attach the drain gasket and drain adapter to the base pan of
the unit before you secure the unit (applicable to heat pump
models only) as shown in figure 13
• Fasten the unit onto the base
1112
1113
At least 24”
At least 16”
At least 4”
At least 24”
Base leg dampers
Drain adapter (heat pump models only)
At least 24”
