53
OPERATION
Operation_Pic_number:1
Text-module

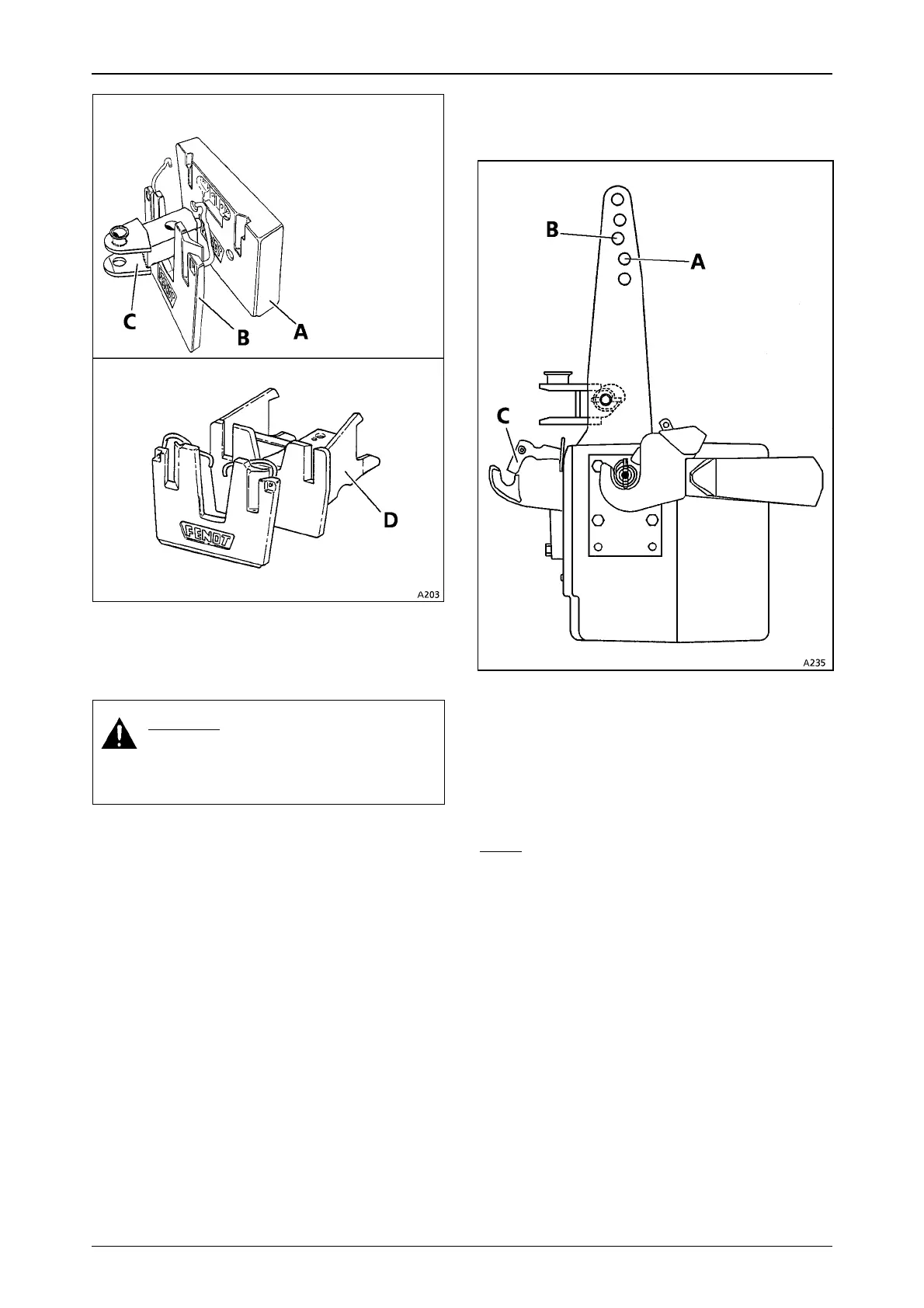

Attachment plate (A)100 kg:
When fitting a mounting plate, reposition the
towing eye. Max. 3 off.
Text-module
Hanging weights (B):
Firmly wedge both handles between the
weights. Approx. 32 kg, max. 10 off.
Text-module
Towing eye extension
This is required when using more than 2 hanging
weights (will take up to 4 weights without
restricting normal movement).
Text-module
Spacer (D):
For hanging weights. Max. 7 hanging weights
may be fitted.
Warning:
Only use original Fendt weights,
otherwise the front hydraulics may
not be able to move freely.
Fig.105
20.3 Front ballast
Front/rear weight 870 kg
Operation_Pic_number:1
A = Fastening point of top link
B = Fastening point for top link with
quick-release coupling
C = Attachments for packer transport
(single-row packer max. 1,000 kg)
Additional weights are not possible.
Note:
870 kg weight can also be supplemented by 3
x 120 kg mounting plates or 8 x 32 kg hanging
weights. Observe permissible front axle
loads.
Fig.106
