CARE AND MAINTENANCE
9. Transmission and fi-
nal drives
9.1 Replacing the gearbox oil
Replace oil only when the gearbox oil is warm.
Draining gearbox oil
Operation_Pic_number:1
● Place oil pan underneath the gear box.
● Unscrew oil drain plugs (A) from the gearbox
housing and 4-WD housing and allow the oil
to drain completely.
● Replace filter cartridge (D/ CARE AND MAIN-
TENANCE Fig. 34).
● Clean the drain plug, refit and tighten.
Filling with gear oil
Operation_Pic_number:1
● Remove dipstick (A) and pour oil through the
filler hole.

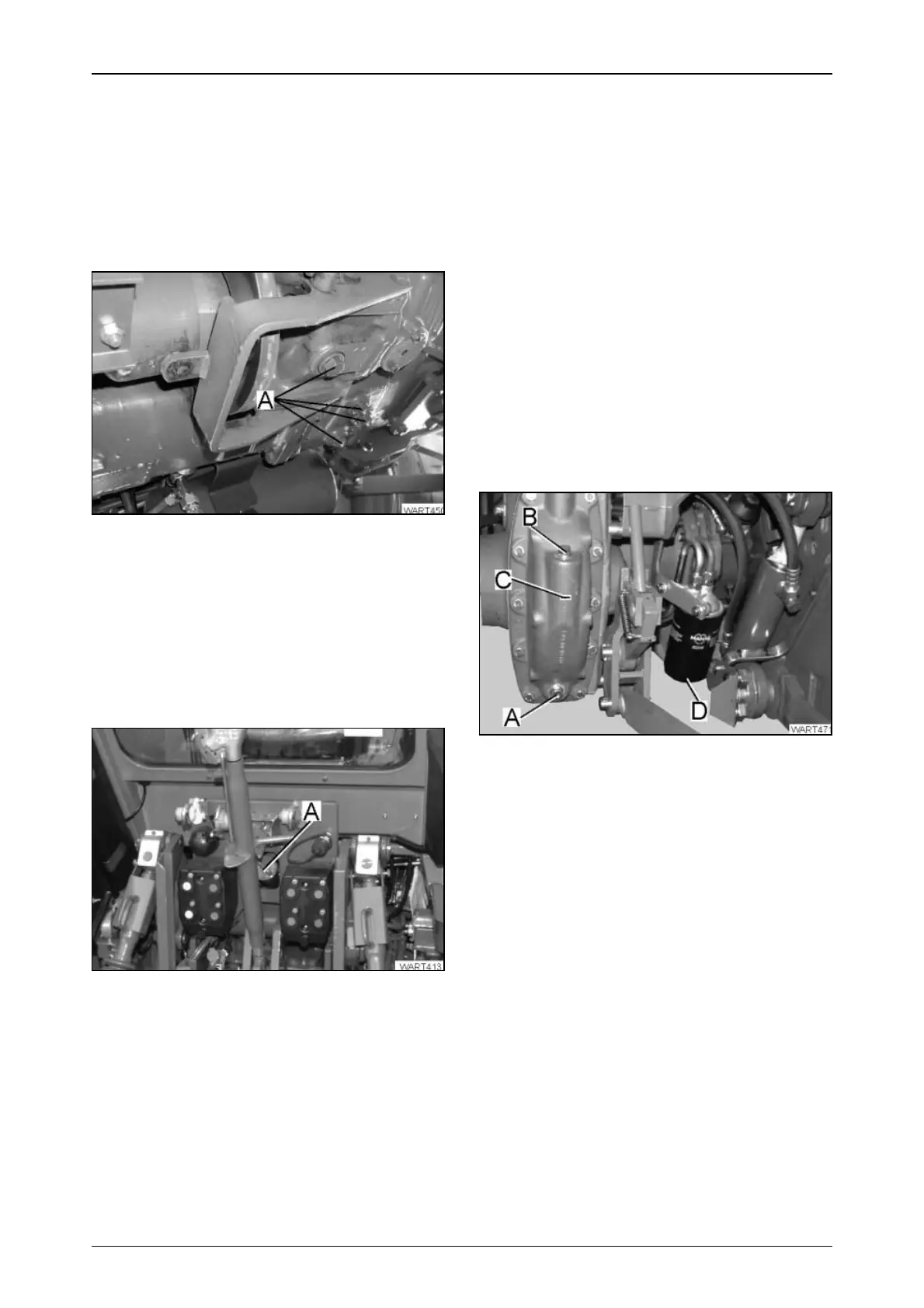

Fig.32
Fig.33
9.2 Checking the gear oil level
● Make sure the tractor is on level ground.
● Twist dipstick and remove.
● Wipe the dipstick using a fibre-free, clean rag.
● Reinsert dipstick fully and twist into place.
● Twist dipstick free again and remove.
The oil level must reach the upper notch of the
dipstick.
The difference in oil volume between the Min.
and Max. markings on dipstick should be ap-
prox. 2.5 litres.
For frequency of changes, oil quantity and qua-
lity, refer to "Fluids and Lubricants" or "Mainten-
ance Schedule".
9.3 Replacing the oil for the fi-
nal drives
Operation_Pic_number:1
● Place oil pan underneath transmission.
● Unscrew drain plug (A) and allow oil to drain
completely.
● Clean the drain plug, put back in place and
tighten.
● Fill specified oil through filler screw (B).
The oil must reach the marker (C).
For frequency of changes, oil quantity and qua-
lity, refer to "Fluids and Lubricants" or "Mainten-
ance Schedule".
Fig.34
