CARE AND MAINTENANCE

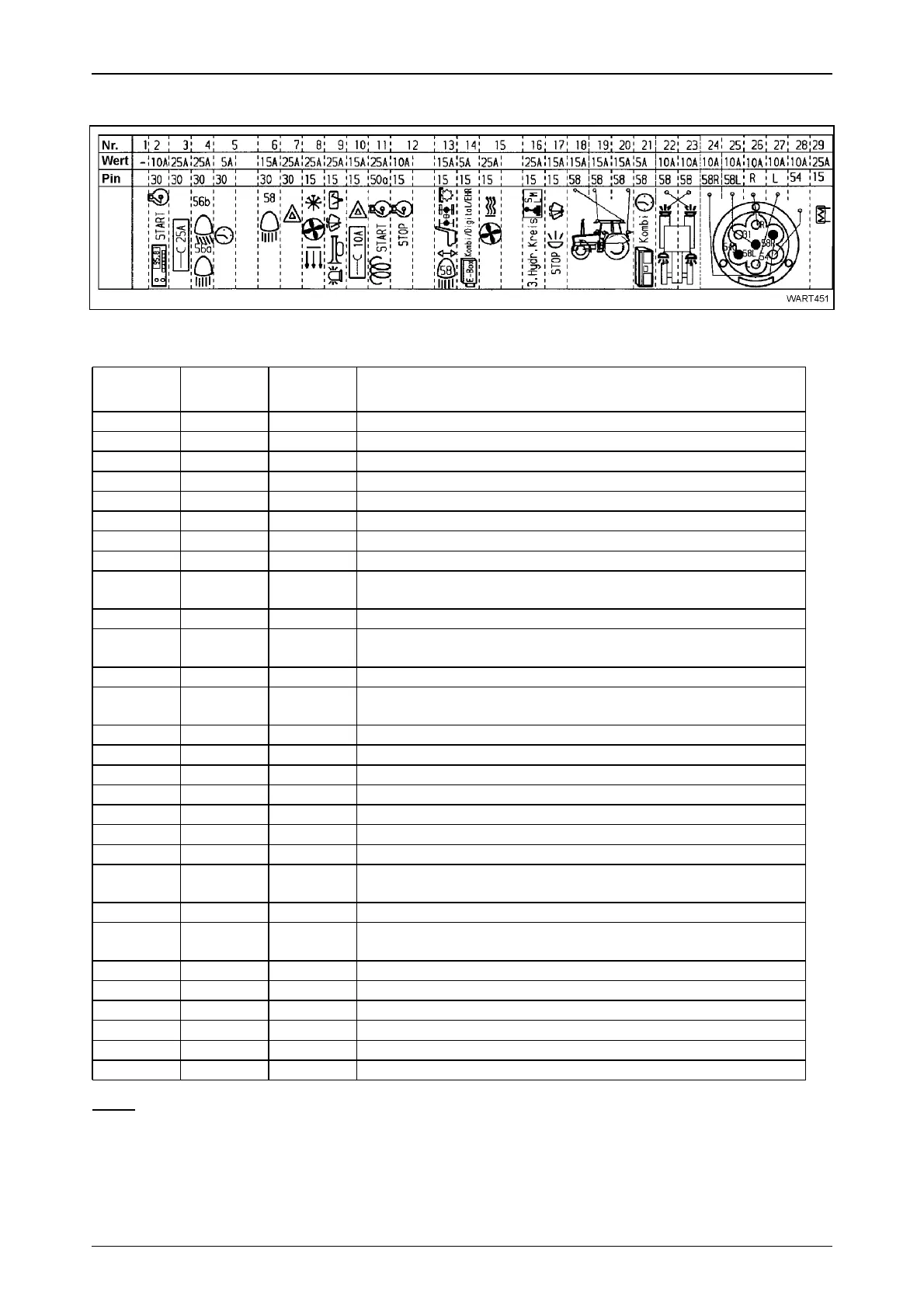

20.1 Fuse holder
Operation_Pic_number:1
Text-module
Note:
Fuse 19 - A larger (25 amp) fuse is required for the worklights above and the worklights in the
cab A-pillar.
Fuse no. PIN Amps.
(A)
Couplers
1-- -
2 30 10 Ignition 30, radio, interior light
3 30 25 Load socket
4 30 25 Dipped headlight (Re56b), main beam headlight (Re56a)
5 30 5 Clock
6 30 15 Headlight pushbutton
7 30 25 Warning indicator lamp 30 pushbutton
8 15 25 On-board voltage, fan
9 15 25 rotating beacon, front wiper, rear wiper, headlight flasher,
horn
10 15 15 Socket 10 A, warning lamp 15
11 50a 25 Starter motor 50, starting excess fuel solenoid valve, cold-
start relay 4
12 15 10 Engine off, cold-start relay 3
13 15 15 Pushbutton light 15, seat compressor, 4-WD pushbutton, dif-
ferential lock pushbutton
14 15 5 Digital box, combi-instrument panel, relay EPC
15 15 25 Heater
16 15 25 Relay 3. hydraulic circuit, relay splitter stage
17 15 15 Pulse generator, stop light
18 58 15 Work lamp in roof, rear
19 58 15 Work lamp in roof, front
20 58 15 Rear work lamp - mudguard
21 58 5 Illumination for clock, combi-instrument, pressure gauge, digi-
tal instrument panel
22 58 10 Left-hand side lamp, left-hand rear lamp
23 58 10 Right-hand side lamp, licence plate lamp, right-hand rear
lamp
24 58 10 Trailer socket 58 R
25 58 10 Right-hand front trailer socket 58, left-hand trailer socket 58
26 R 10 Right-hand front trailer socket, right-hand trailer socket
27 L 10 Left-hand front trailer socket, left-hand trailer socket
28 Stop. 10 Trailer socket 54
29 58 25 Rear window heating
Fig.77
