44
OPERATION

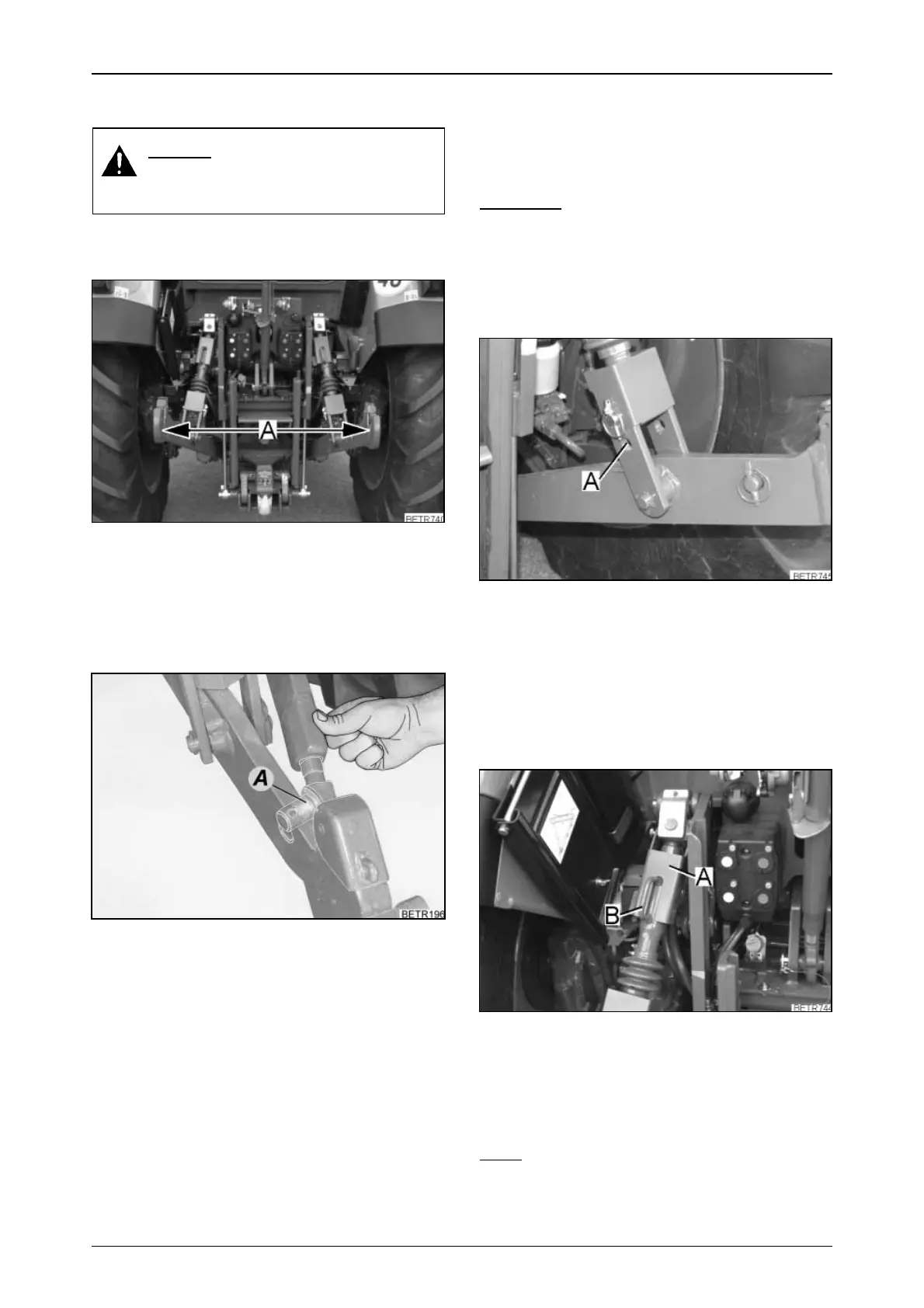

17. Three-point linkage
17.1 Lower links
Operation_Pic_number:1
Category II = 825 mm, III = 965 mm distance
between the pickup hooks (A).
Adjusting the distance between the
lower links
Operation_Pic_number:1
Text-module
Remove the split pin.
Adjust angled threaded bolt (A) identically on
both left and right lateral supports.
Reconnect angled threaded bolt to lower link
and secure with split pin.
Danger:
Stay clear of operating three-point
linkage. Risk of injury.
Fig.77
Fig.78
Check:
● Before lifting the hitched implement, ensure
that both lateral locks are completely
retracted and free of play (pull lever
forwards).
Important:
Lower links are automatically rigid down
both sides whenever lift arms move
upwards; too tight a setting will result in
clamping in the three-point linkage.
Height-adjustablef lower links
Operation_Pic_number:1
● Fit bolt in lower hole (A).
Required for implements with support wheels
and without swinging compensation, e.g.
planting machines.
17.2 Extendable struts
Operation_Pic_number:1
Use the screw handle to adjust the length of the
extendable struts.
● Lift securing clamp (A).
● Adjust strut by turning handle (B).
Note:
It must still be possible for the securing
clamp (A) to be folded over the turning handle
(B).
Fig.79
Fig.80
