OPERATION
Lifting
Operation_Pic_number:1

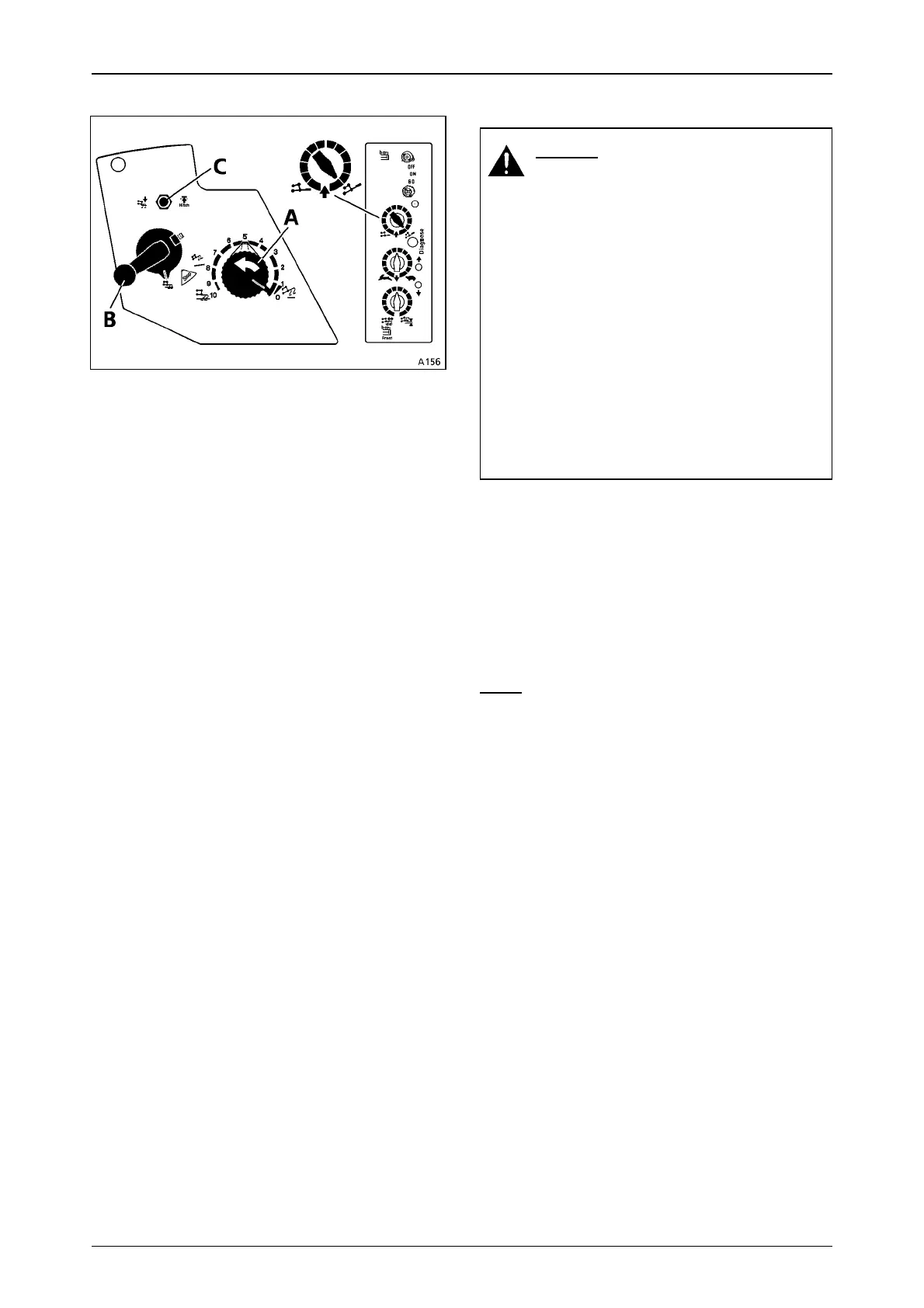

● Move coupler hook upwards using dial (A) or
quick lift lever (B).
● Push toggle switch (A) to right.
● Lower powerlift until load is removed from
hitch arms.
Fig.104
20. Additional ballasting
20.1 Rear ballast
Text-module
Wheel ballast, approx. 130 kg / pair at
rear
Max. 3 pairs
Bolts must be re-tightened after a short
operating time (210 Nm).
Note:
Only possible as of 30 inch fixed rim, 34 inch
adjustable rim.
20.2 Front ballast
Text-module
Attachment plate 120 kg:
Maximum 3 pieces.
Can only be fitted to tractors without front
powerlifts.
Text-module
Wafer plates approx. 32 kg
Maximuim 10 pieces.
Can only be fitted to tractors without front
powerlifts.
Specific mounting plate is required.
Danger:
When operating with rear-mounted
implements, do not exceed
permissible axle load. Steering
efficiency must be maintained at all
times.
Traction load can be reduced by
front-mounted implements or
weights. Ensure sufficient braking
capacity is available.
Always fit weights in the specified
position.
Do not exceed the permissible total
weight or axle load (refer to rating
plate or vehicle documents). When
using ballast weights, make sure of
correct tyre pressures!
