Fermator MOD MC PREMIUM PM User Manual
5
of 1
of 1 rating
120 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
102
MOD MC PREMIUM PM

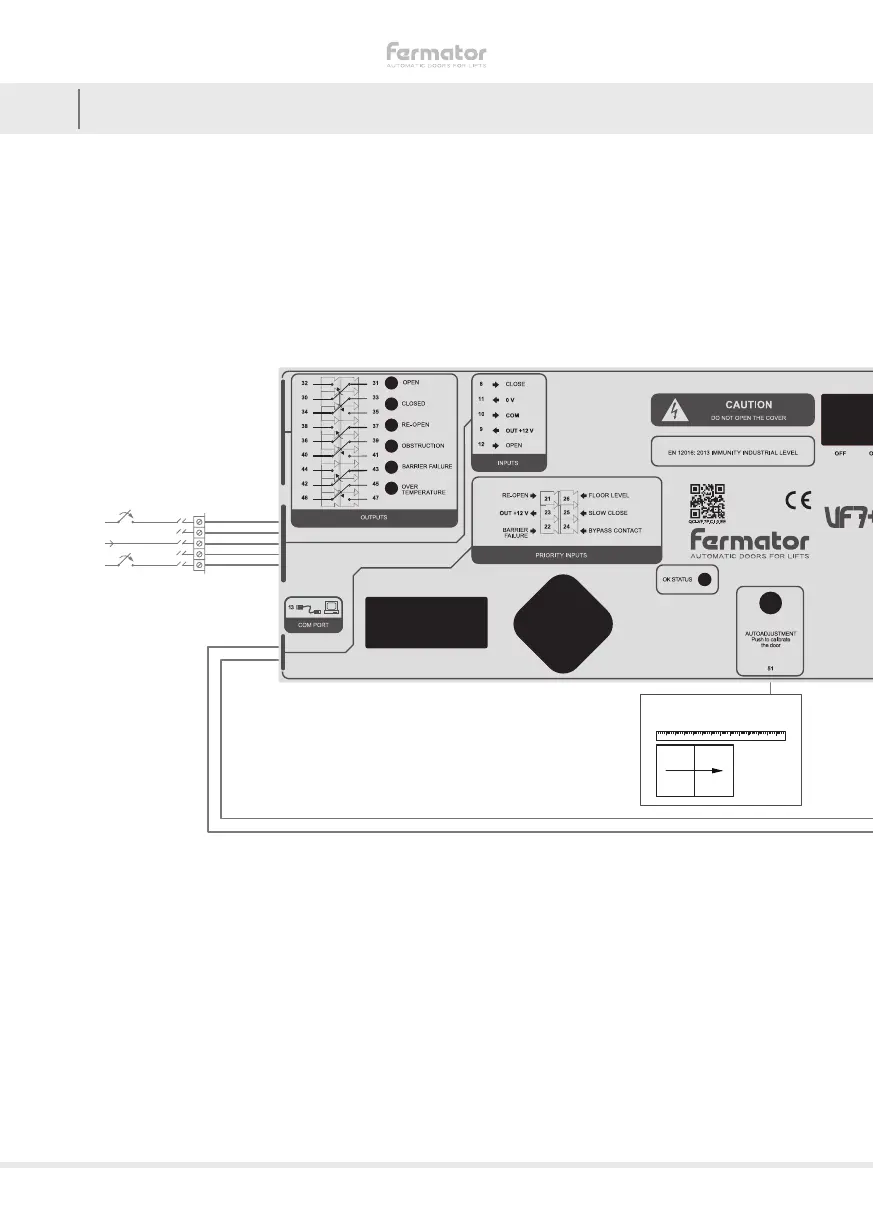

5.1.1 CONNECTIONS
5
5.1 VF7+ RELA
Y
ELECTRONIC MODULE
ON
OFF
1
2
12 V 2
Ah
12...60 V DC 100...230 V
AC
12...60 V DC 100...230 V
AC
230 V
0
?
101
103
Table of Contents
Table of Contents
3
General
6
Equipment and Tools
6
Statements
6
Stainless Steel Cleaning and Maintenance Instructions
7
Environmental Awareness
7
Abbreviations
8
List of Components
9
C2 Door
10
Electronic Module Assembling Options
11
Accessories
14
Optional Components
19
Assembly Instructions
21
Sill Installation
22
Aluminium 15 MM Flat Channel Sill Assembly
22
Aluminium 8 MM Recess Flat Channel Sill Assembly
23
Steel Flat Channel Sill Assembly
24
Massive Flat Channel Sill Assembly
25
Operator Installation
26
Operator Assembly
26
Operator Adjustment
30
Clear Opening (PL) Verification and Validation
31
Sheet Metal Panel
33
Sheet Metal Panel Installation
33
Sheet Metal Panel Verification and Validation
37
Eccentric Wheel Verification and Validation
39
Panel Verification and Validation
40
Toe Guard Installation
41
Other Adjustments
43
CDL / Clutch Verification and Validation
43
CDL / Clutch Adjustment
45
Electrical Contacts Verification and Validation
49
Coupling Lateral View
51
List of Components
53
T2 Door
54
Electronic Module Assembling Options
55
Accessories
58
Optional Components
63
Assembly Instructions
65
Sill Installation
66
Aluminium 15 MM Flat Channel Sill Assembly
66
Aluminium 8 MM Recess Flat Channel Sill Assembly
67
Steel Flat Channel Sill Assembly
68
Massive Flat Channel Sill Assembly
69
Operator Installation
70
Operator Assembly
70
Operator Adjustment
74
Clear Opening (PL) Verification and Validation
75
Sheet Metal Panel
77
Sheet Metal Panel Installation
77
Sheet Metal Panel Verification and Validation
81
Eccentric Wheel Verification and Validation
83
Panel Verification and Validation
84
Toe Guard Installation
85
Other Adjustments
87
CDL Verification and Validation
87
CDL Adjustment
88
Electrical Contacts Verification and Validation
89
Coupling Lateral View
91
Optional Components
93
Optional Components C2
93
Egress Device (from Pit)
94
Fixings to Car Roof Operator Assembling Rails
95
Optional Components T2
97
Egress Device (from Pit)
98
Fixings to Car Roof Operator Assembling Rails
99
Electronic Module
101
VF7+ Relay Electronic Module
101
Connections
102
VF7+ CAN Electronic Module
105
Connections
106
VF5+ Electronic Module
109
Connections
110
Emergency Power Supplier
113
Connections
115
EU Declaration of Conformity
117
