Fermator MOD MC PREMIUM PM - 3.2.1 Sill installation

66
MOD MC PREMIUM PM
20
PL
B
A
=
=
=
30
10
3

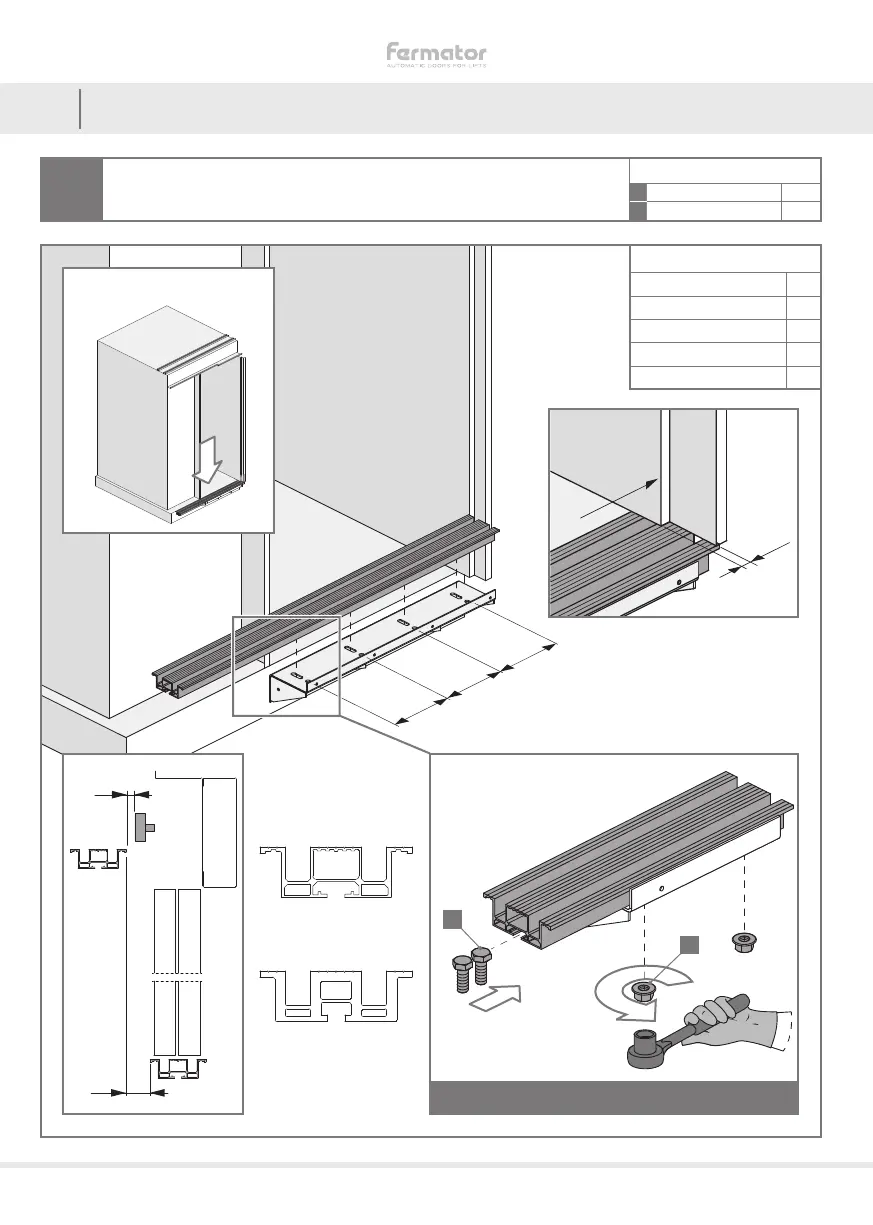

3.2.1.1 ALUMINIUM 15 mm FLAT CHANNEL SILL ASSEMBLY
3.2.1.1.1
Follow the steps below to assemble the sill. The number of screws provided vary
according to the PL.
ACCESSORIES PER SET
A M10 x 16 DIN 933 x4
B M10 DIN 6923 x4
AIM
The A screws must be slid through the sill laterally.The A screws must be slid through the sill laterally.
3.2 ASSEMBLY INSTRUCTIONS
REINFORCED ALUMINIUM
15 mm TRACK
ALUMINIUM 15 mm
TRACK
ACCESSORIES
700 ≤ PL ≤ 750 x5
800 ≤ PL ≤ 950 x6
1.000 ≤ PL ≤ 1.150 x7
1.200 ≤ PL ≤ 1.350 x8
1.400 x9
