Fermator MOD MC PREMIUM PM - CDL Adjustment

88
MOD MC PREMIUM PM
A
B
DO NOT FULLY
REMOVE
0,5
0,5
3.2 ASSEMBLY INSTRUCTIONS
3

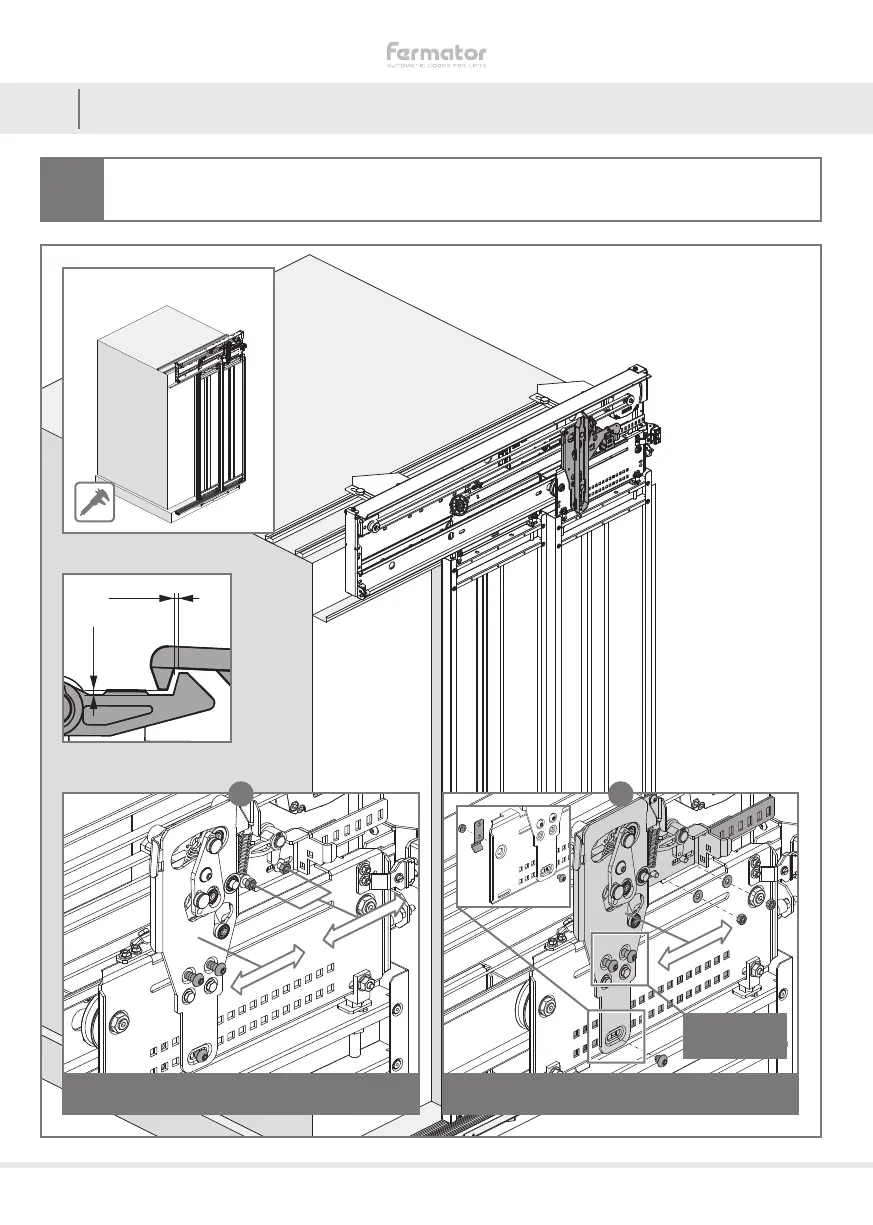

3.2.8.2 CDL ADJUSTMENT
3.2.8.2.1
The CDL is delivered adjusted, but if it still needs further adjustment, please follow the indications below according
to your case.
AIM
To carry on a ne tuning it’s only needed to loose the ve To carry on a ne tuning it’s only needed to loose the ve
indicated screws without fully remove it. The clutch base hole, indicated screws without fully remove it. The clutch base hole,
grants to move ± 7,5 mm.grants to move ± 7,5 mm.
If the regulation needed is more than ± 7,5 mm, you’ll need to If the regulation needed is more than ± 7,5 mm, you’ll need to
fully remove the screws with the aim to change their position in fully remove the screws with the aim to change their position in
the carriage (except two screws placed in the carriage long hole).the carriage (except two screws placed in the carriage long hole).
