MOD MC PREMIUM PM
*
+
-
A
D
B
C
* Only if PL is ≥ 1.200 mm.* Only if PL is ≥ 1.200 mm.

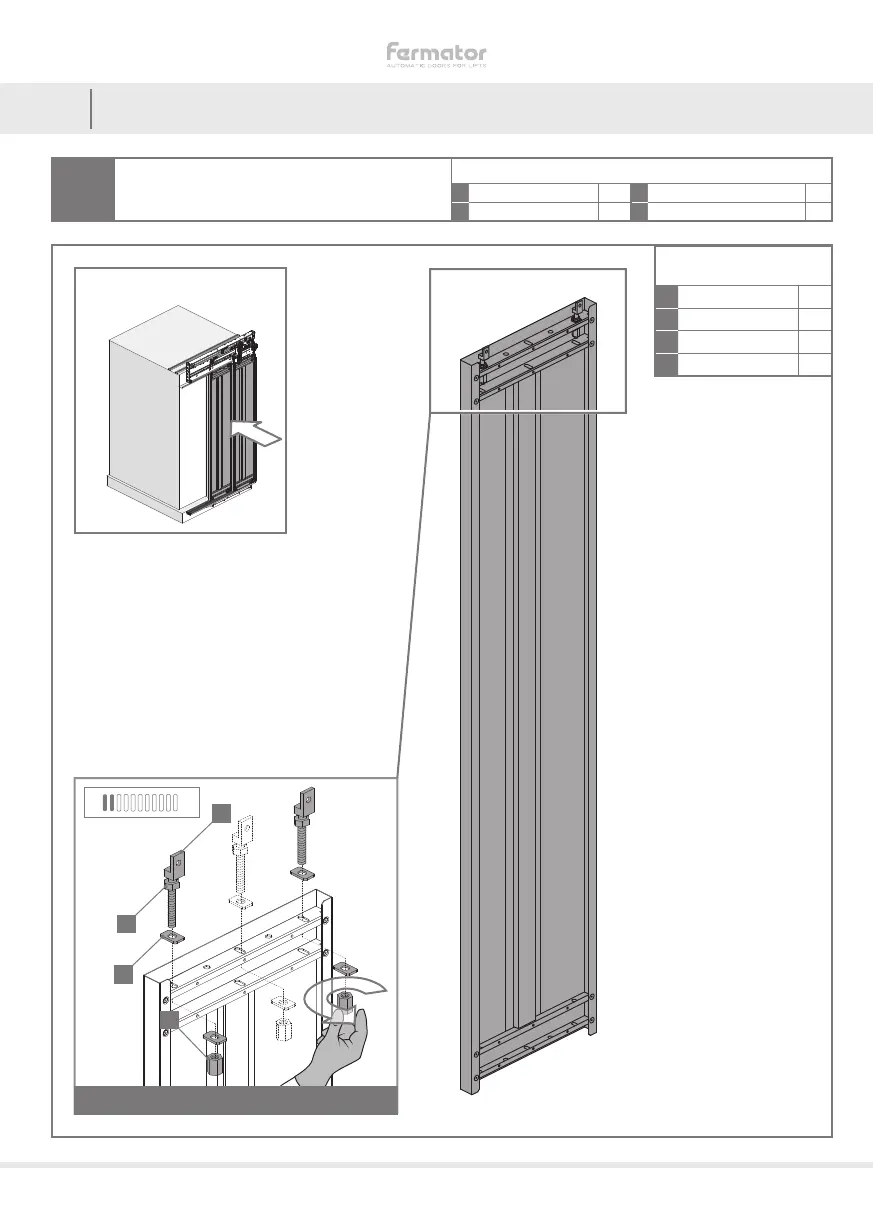

3.2 ASSEMBLY INSTRUCTIONS
3
3.2.4.1 SHEET METAL PANEL INSTALLATION
3.2.4.1.1
As a previous step x the regulation supports to the panel
but do not fully tighten them.
ACCESSORIES PER PANEL
A Regulation support x2 C Rectangular washer x4
B M10 DIN 6923 x2 D M10 x 25 DIN 6334 x2
AIM
ACCESSORIES PER
PANEL ≥ 1.200 mm
A Regulation support x3
B M10 DIN 6923 x3
C Rectangular washer x6
D M10 x 25 DIN 6334 x3
