Fermator MOD MC PREMIUM PM - 4.1.2 Fixings to car roof operator assembling rails

95
MOD MC PREMIUM PM
25
==
≥ 30
54
75 100
PL/2 PL/2
60 6015 15
60
150
100 100
60
150
PL
B
C
A
D
SAMPLE BRACKET
4

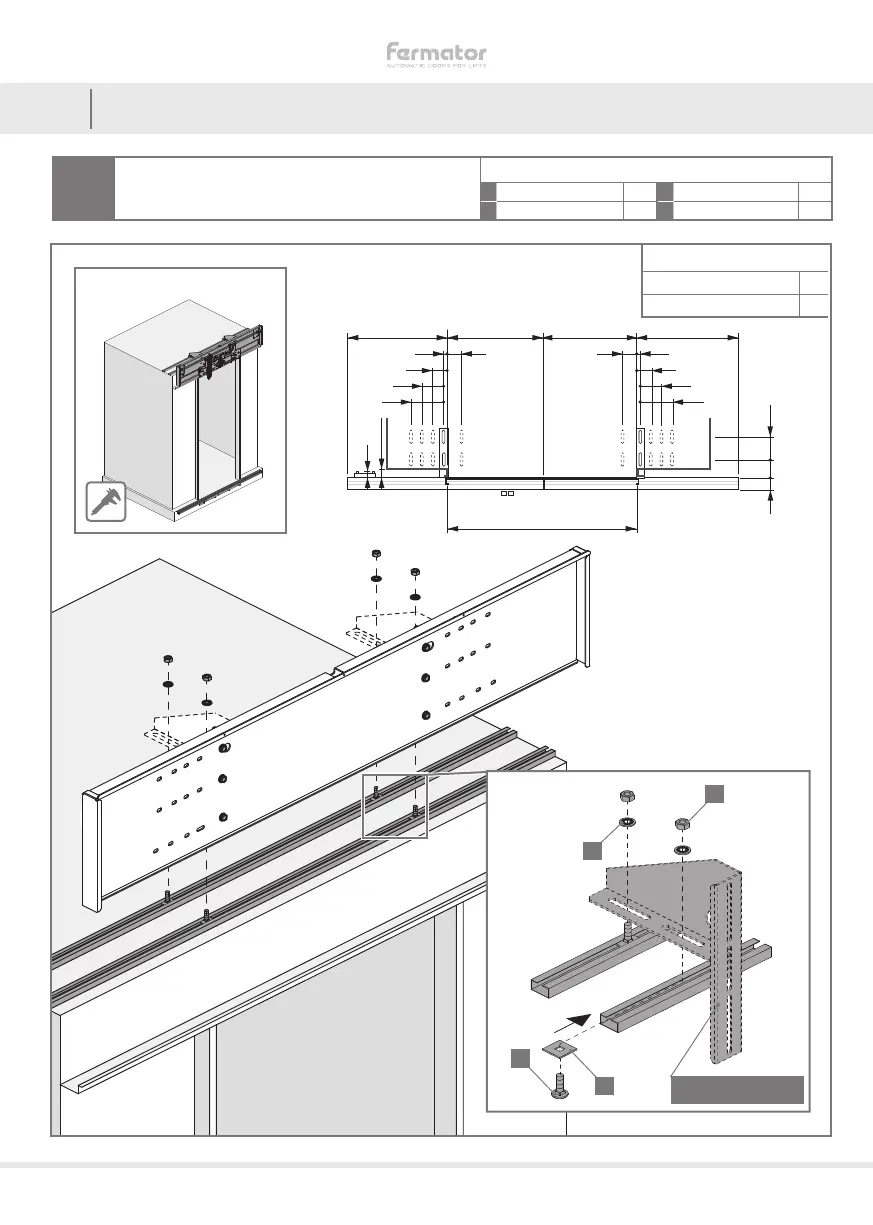

4.1.2 FIXINGS TO CAR ROOF OPERATOR ASSEMBLING RAILS
4.1 OPTIONAL COMPONENTS
AIM
4.1.2.1
Follow the indications below to assemble the brackets to
the car roof fastening rails. The car roof fastening rails
have to be installed central to the PL
ACCESSORIES PER SET
A M12 x 40 DIN 603 x4 C
M12 NF E25-511 M
x4
B Fixation plate x4 D
M12 DIN 934
x4
DELIVERED SETS
700 ≤ PL ≤ 950 x1
1.000 ≤ PL ≤ 1.400 x2
