Fermator MOD MC PREMIUM PM - Massive Flat Channel Sill Assembly

25
MOD MC PREMIUM PM
B
A
½ PL
½ PL
=
=
=
=
=
30
10
2.2 ASSEMBLY INSTRUCTIONS
2

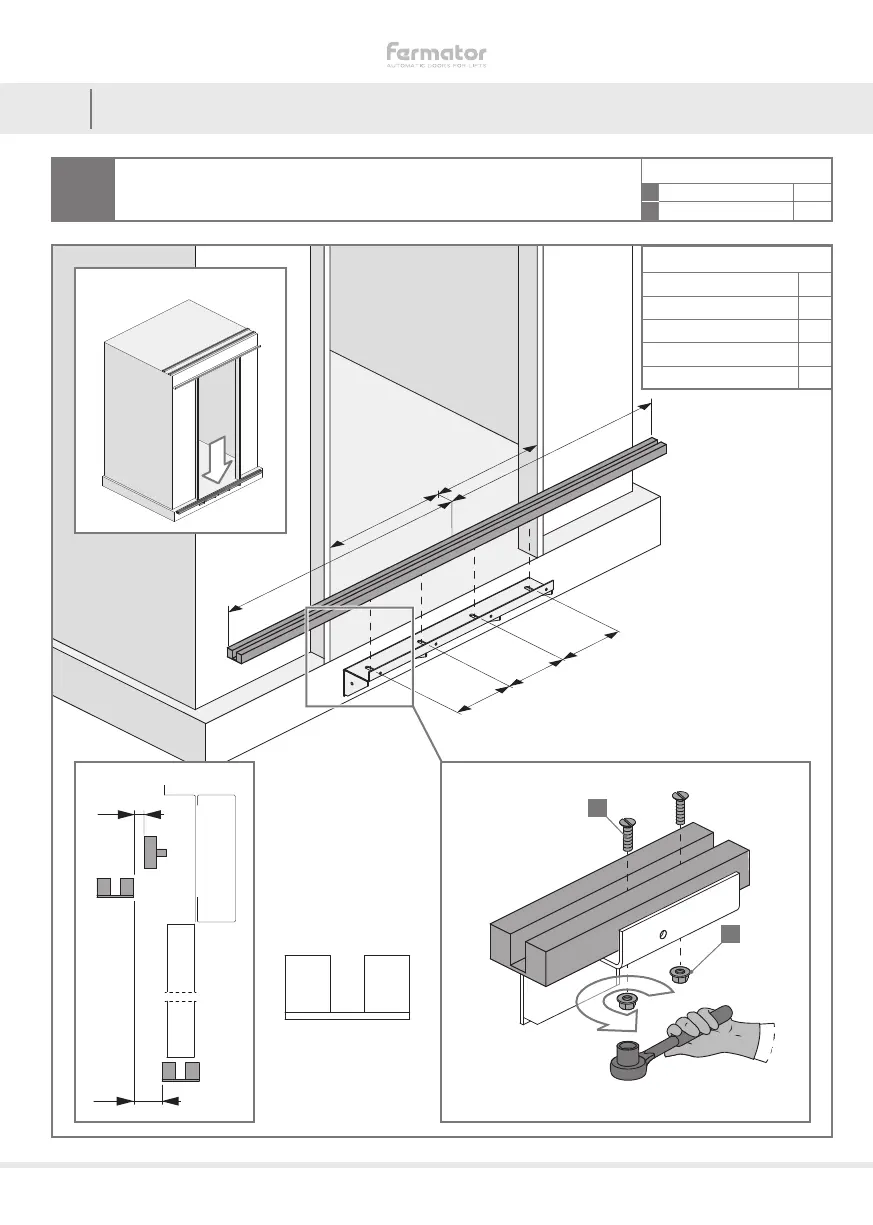

2.2.1.4 MASSIVE FLAT CHANNEL SILL ASSEMBLY
2.2.1.4.1
Follow the steps below to assemble the sill. The number of screws provided vary
according to the PL.
ACCESSORIES PER SET
A M8 x 16 DIN 963 x6
B M8 DIN 6923 x6
AIM
ACCESSORIES
700 ≤ PL ≤ 750 x5
800 ≤ PL ≤ 950 x6
1.000 ≤ PL ≤ 1.150 x7
1.200 ≤ PL ≤ 1.350 x8
1.400 x9
MASSIVE
