Fermator MOD MC PREMIUM PM - Steel Flat Channel Sill Assembly

68
MOD MC PREMIUM PM
20
PL
=
=
=
A
30
10
3.2.1.3.1

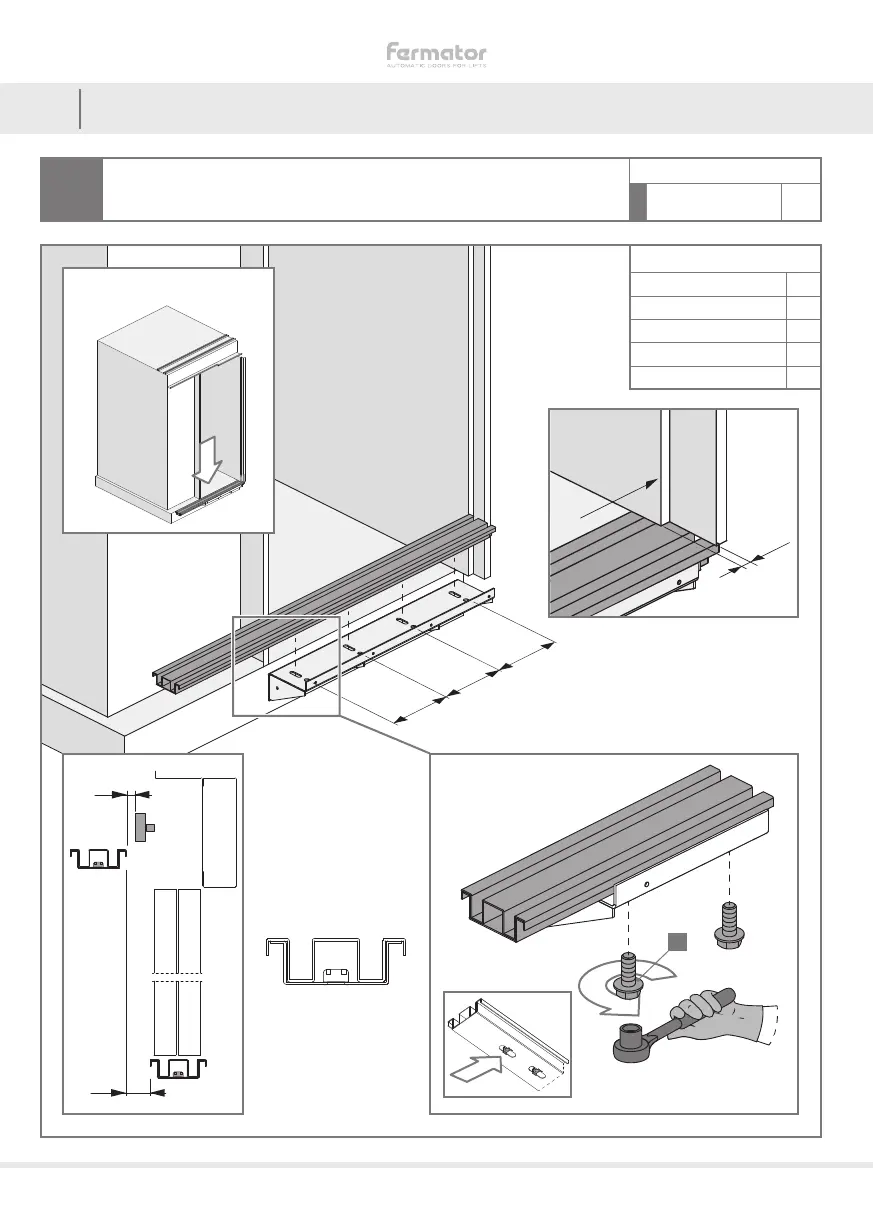

Follow the steps below to assemble the sill. The number of screws provided vary
according to the PL.
ACCESSORIES PER SET
A M8 x 16 DIN 6921 x6
AIM
3.2 ASSEMBLY INSTRUCTIONS
3
3.2.1.3 STEEL FLAT CHANNEL SILL ASSEMBLY
STEEL
ACCESSORIES
700 ≤ PL ≤ 750 x5
800 ≤ PL ≤ 950 x6
1.000 ≤ PL ≤ 1.150 x7
1.200 ≤ PL ≤ 1.350 x8
1.400 x9
