Fermator MOD MC PREMIUM PM - 2.2.3 Clear opening (PL) verification and validation

31
MOD MC PREMIUM PM
PL + 45
2.2.3.1

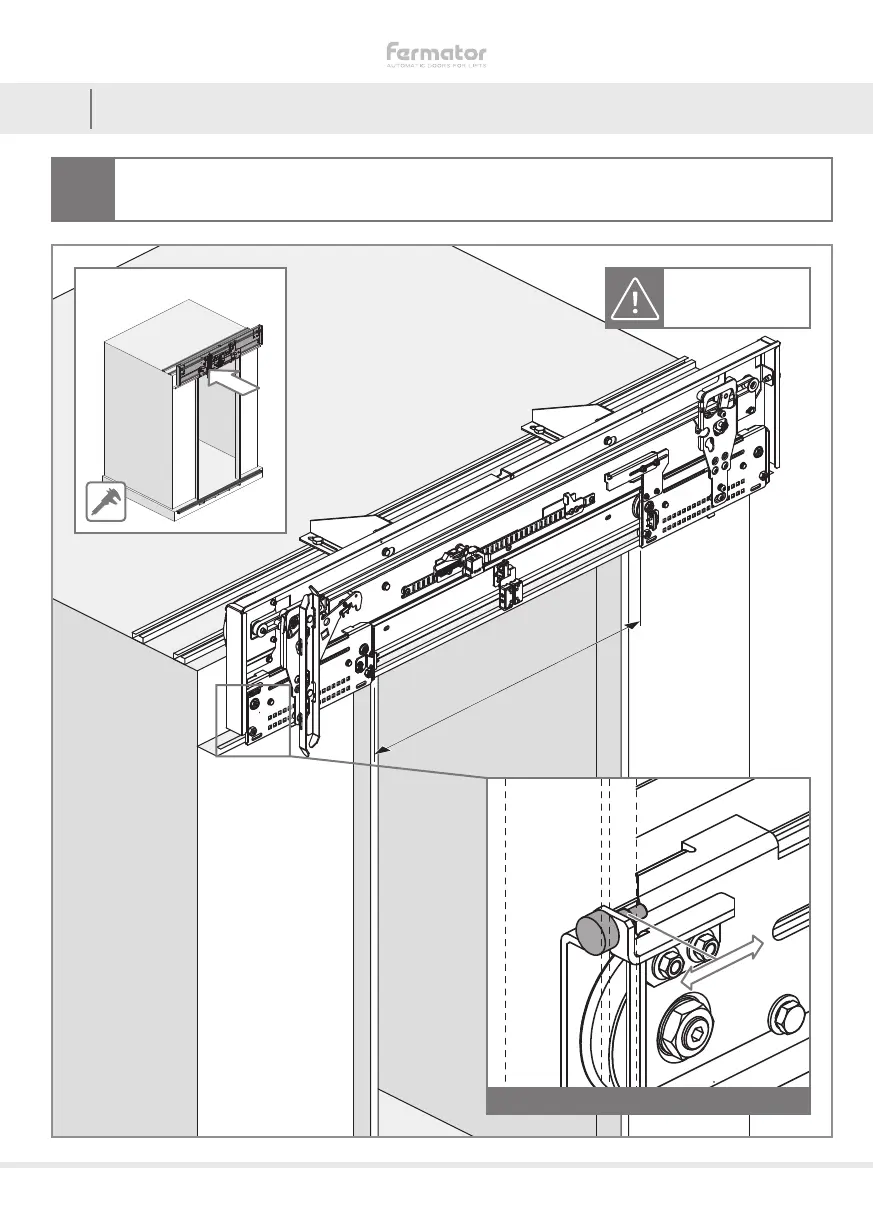

In order to verify the correct position of the clear opening (PL) first place the carriages in the open position.
2.2 ASSEMBLY INSTRUCTIONS
2
2.2.3 CLEAR OPENING (PL) VERIFICATION AND VALIDATION
Only perform this
action if the dimension
is other than the one
shown below.
Adjust the rubber stop until the distance between Adjust the rubber stop until the distance between
carriages is PL + 45 mm.carriages is PL + 45 mm.
AIM
