Fermator MOD MC PREMIUM PM - Steel Flat Channel Sill Assembly

24
MOD MC PREMIUM PM
½ PL
½ PL
=
=
A
=
=
=
30
10
2.2 ASSEMBLY INSTRUCTIONS
2

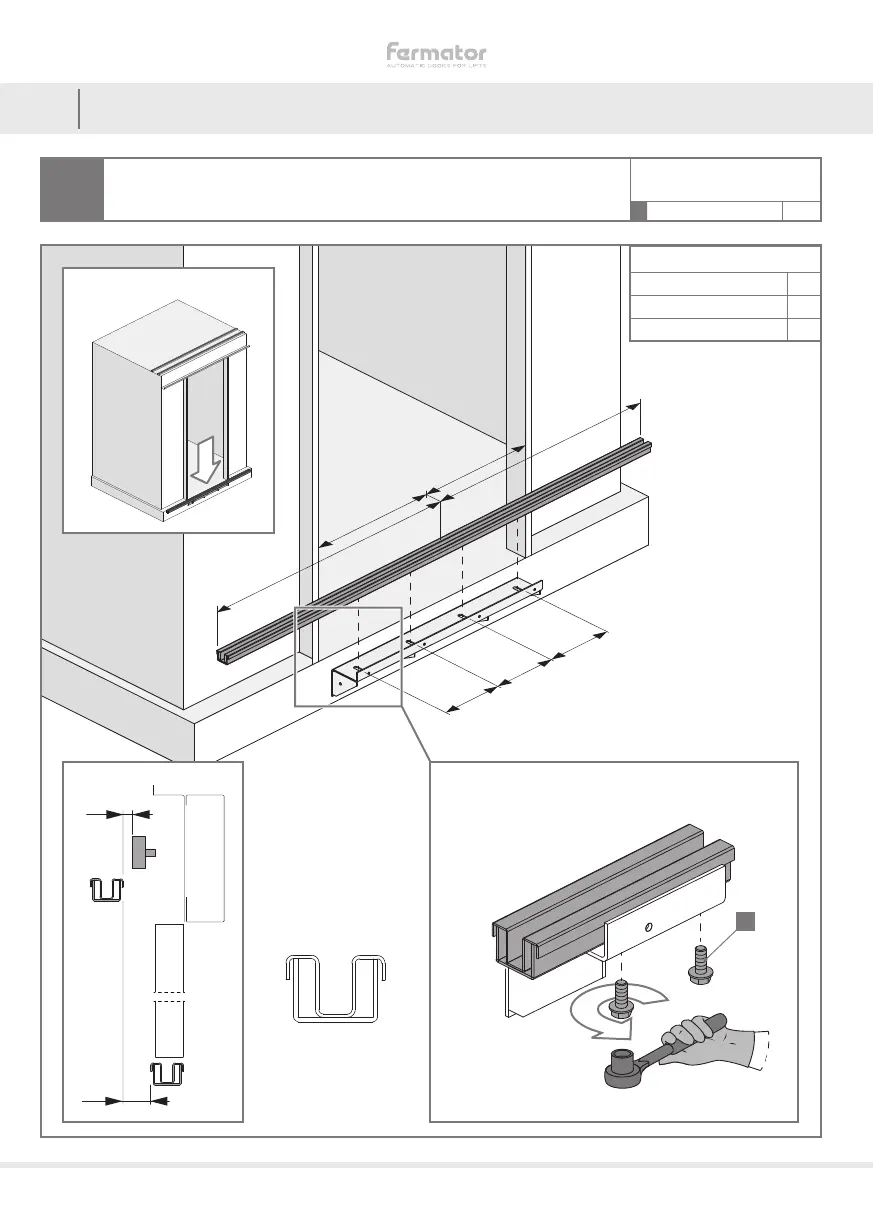

2.2.1.3 STEEL FLAT CHANNEL SILL ASSEMBLY
AIM
2.2.1.3.1
Follow the steps below to assemble the sill. The number of screws provided vary
according to the PL.
ACCESSORIES PER SET
A M8 x 16 DIN 6921 x6
ACCESSORIES
700 ≤ PL ≤ 850 x4
900 ≤ PL ≤ 1.250 x5
1.300 ≤ PL ≤ 1.400 x6
STEEL
