22
MOD MC PREMIUM PM
=
=
=
½ PL
½ PL
=
=
B
A
30
10
2.2.1.1.1
Follow the steps below to assemble the sill. The number of screws provided vary
according to the PL.
ACCESSORIES PER SET
A M10 x 16 DIN 933 x4
B M10 DIN 6923 x4
ACCESSORIES
700 ≤ PL ≤ 850 x4
900 ≤ PL ≤ 1.250 x5
1.300 ≤ PL ≤ 1.400 x6
AIM
The A screws must be slid through the sill laterally.The A screws must be slid through the sill laterally.
REINFORCED ALUMINIUM
15 mm TRACK SILL
ALUMINIUM 15 mm
TRACK SILL
2

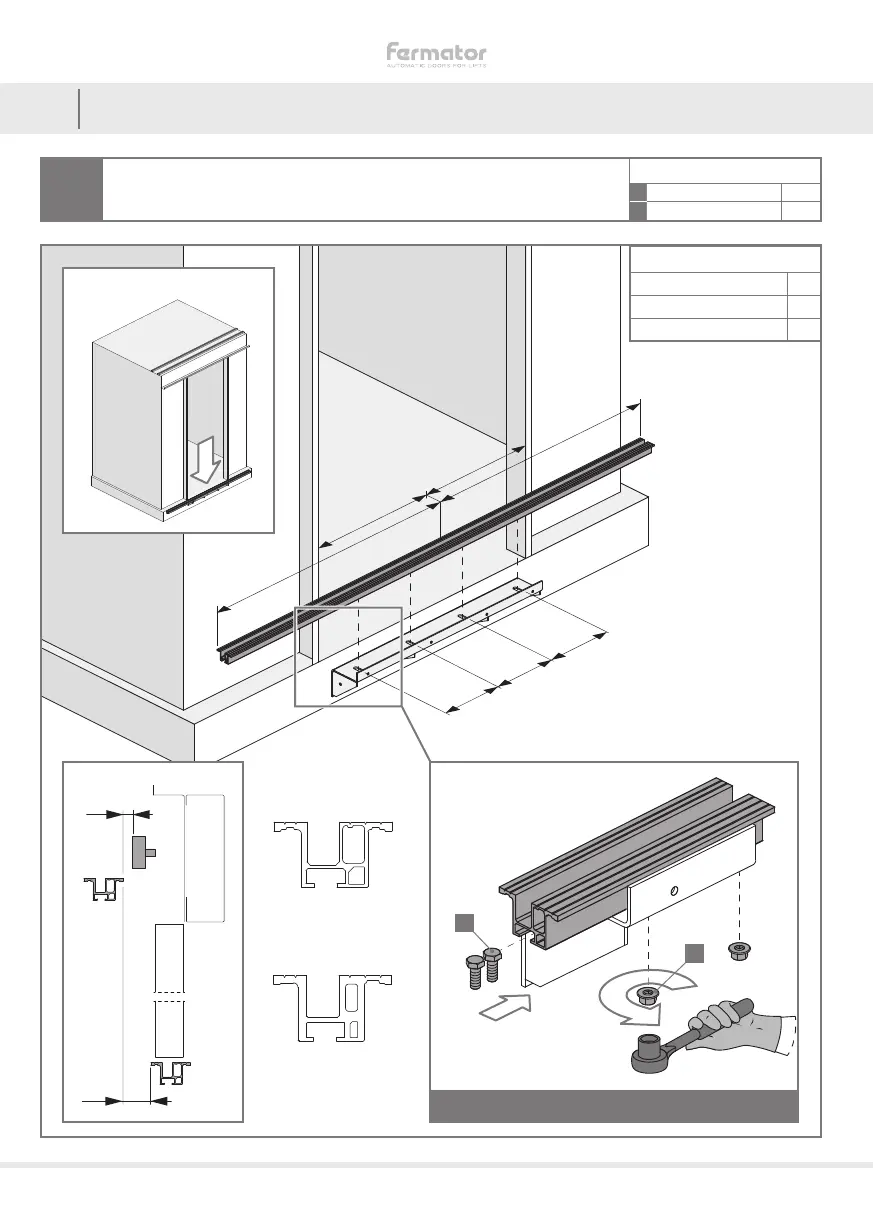

2.2.1.1 ALUMINIUM 15 mm FLAT CHANNEL SILL ASSEMBLY
2.2 ASSEMBLY INSTRUCTIONS
