2.2 ASSEMBLY INSTRUCTIONS
2
2.2.5 ECCENTRIC WHEEL VERIFICATION AND VALIDATION
2.2.5.1

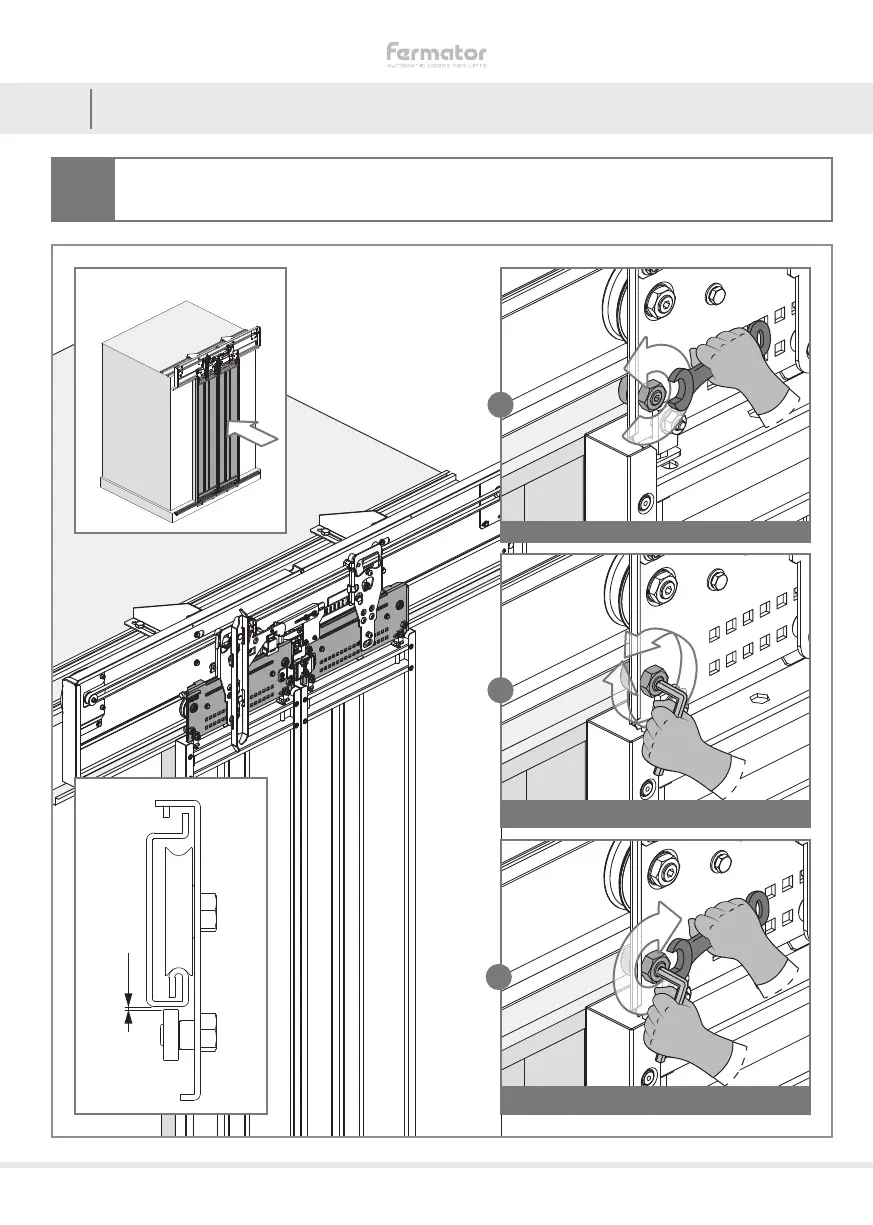

To improve the performance of the door, set the eccentric roller at 0,5 mm or less from the top track without
touching it.
With the flat wrench loosen the wheel.With the flat wrench loosen the wheel.
Once the wheel has been loosened place it at Once the wheel has been loosened place it at
0,5 mm from top track using the allen wrench.0,5 mm from top track using the allen wrench.
Tighten the hexagonal screw with a flat wrench Tighten the hexagonal screw with a flat wrench
whilst the allen wrench is locking the inner screw.whilst the allen wrench is locking the inner screw.
