Fermator MOD MC PREMIUM PM - Aluminium 8 MM Recess Flat Channel Sill Assembly

67
MOD MC PREMIUM PM
20
PL
B
A
=
=
=
30
10
3.2.1.1.2

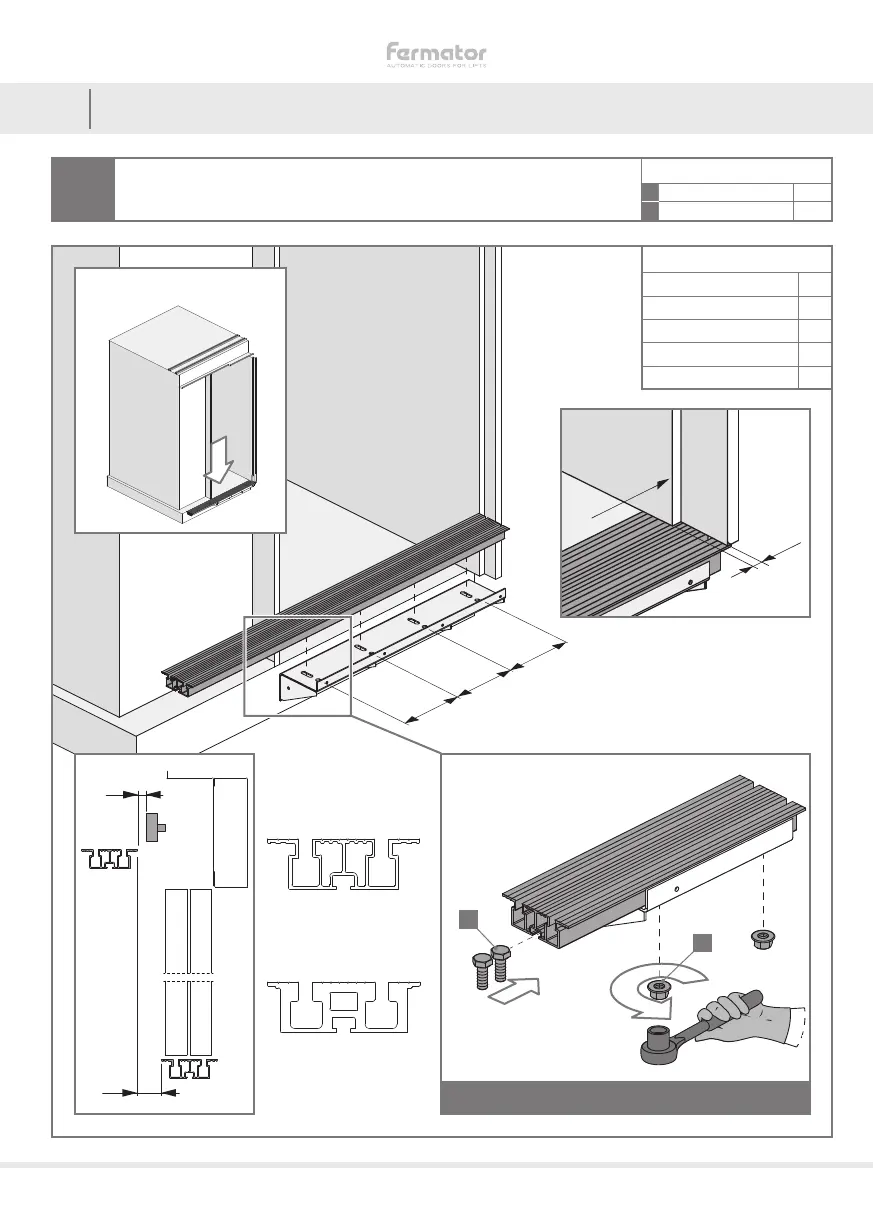

Follow the steps below to assemble the sill. The number of screws provided vary
according to the PL.
ACCESSORIES PER SET
A M8 x 16 DIN 933 x4
B M8 DIN 6923 x4
AIM
The A screws must be slid through the sill laterally.The A screws must be slid through the sill laterally.
3.2 ASSEMBLY INSTRUCTIONS
3 3.2.1.2 ALUMINIUM 8 mm RECESS FLAT CHANNEL SILL ASSEMBLY
REINFORCED ALUMINIUM
8 mm TRACK
ALUMINIUM 8 mm
TRACK
ACCESSORIES
700 ≤ PL ≤ 750 x5
800 ≤ PL ≤ 950 x6
1.000 ≤ PL ≤ 1.150 x7
1.200 ≤ PL ≤ 1.350 x8
1.400 x9
