Fermator MOD MC PREMIUM PM - 4.2.2 Fixings to car roof operator assembling rails

99
MOD MC PREMIUM PM
90 10075
≥ 25
165
50
85
60
15
165
PL
PL
B
C
A
D
SAMPLE BRACKET
AIM
DELIVERED SETS
700 ≤ PL ≤ 950 x1
1.000 ≤ PL ≤ 1.400 x2
4.2.2.1

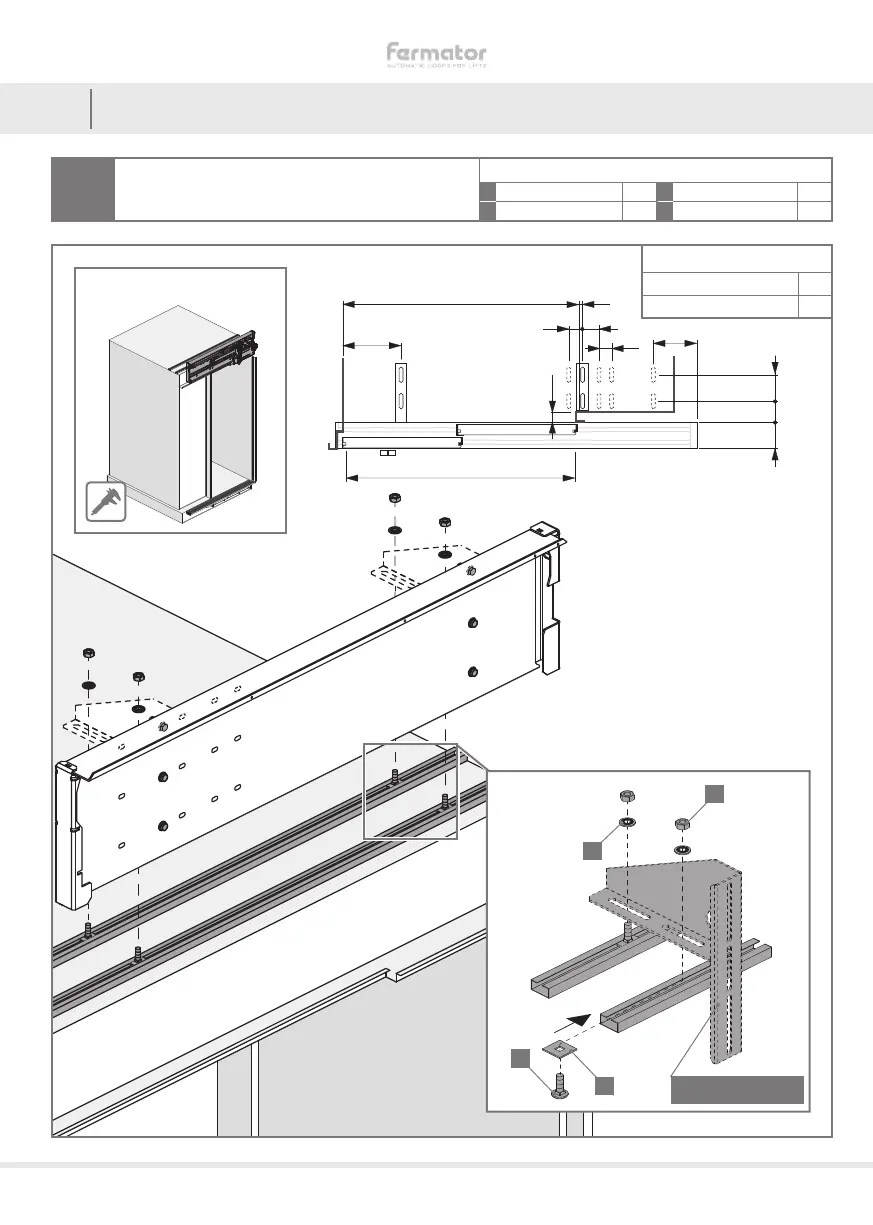

Follow the indications below to assemble the brackets to
the car roof fastening rails. The car roof fastening rails
have to be installed central to the PL
ACCESSORIES PER SET
A M12 x 40 DIN 603 x4 C
M12 NF E25-511 M
x4
B Fixation plate x4 D
M12 DIN 934
x4
4
4.2.2 FIXINGS TO CAR ROOF OPERATOR ASSEMBLING RAILS
4.2 OPTIONAL COMPONENTS
