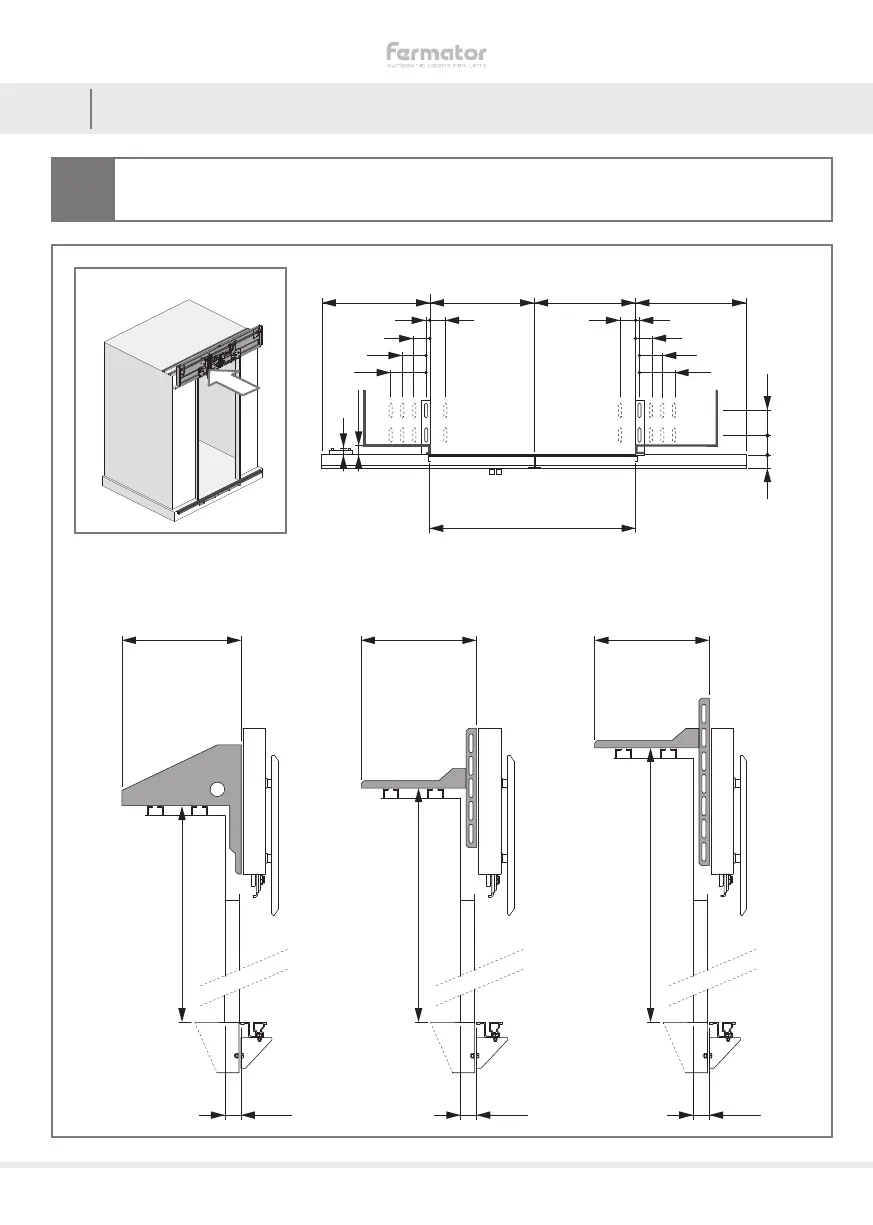

General fixing position overview. Preferably place the car fasteners as close as possible to the PL.
AIM
2.2 ASSEMBLY INSTRUCTIONS
2 2.2.2.1 OPERATOR ASSEMBLY
STATIC
EF BRACKET
ADJUSTABLE
ER BRACKET
ADJUSTABLE
EG BRACKET
