2.2.4.1.4

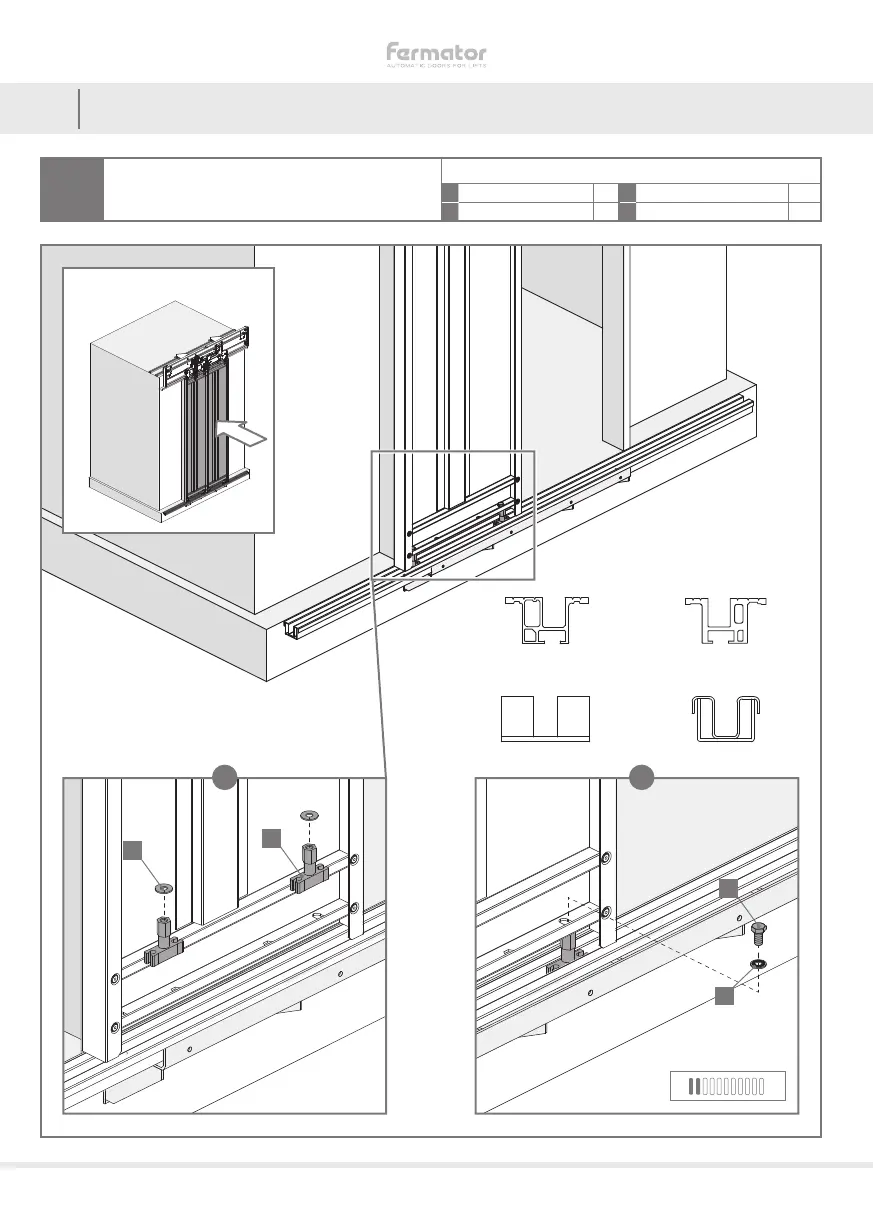

Follow the illustrations below to assemble the guide
shoes, but do not tighten them.
ACCESSORIES PER PANEL
J 15 mm guide shoe x2 L M8 x 16 DIN 933 x2
K M8 Washer x2 M M8 Contact washer x2
2.2 ASSEMBLY INSTRUCTIONS
2
2.2.4.1 SHEET METAL PANEL INSTALLATION
AIM
MASSIVE STEEL
REINFORCED ALUMINIUM
15 mm TRACK SILL
ALUMINIUM 15 mm
TRACK
