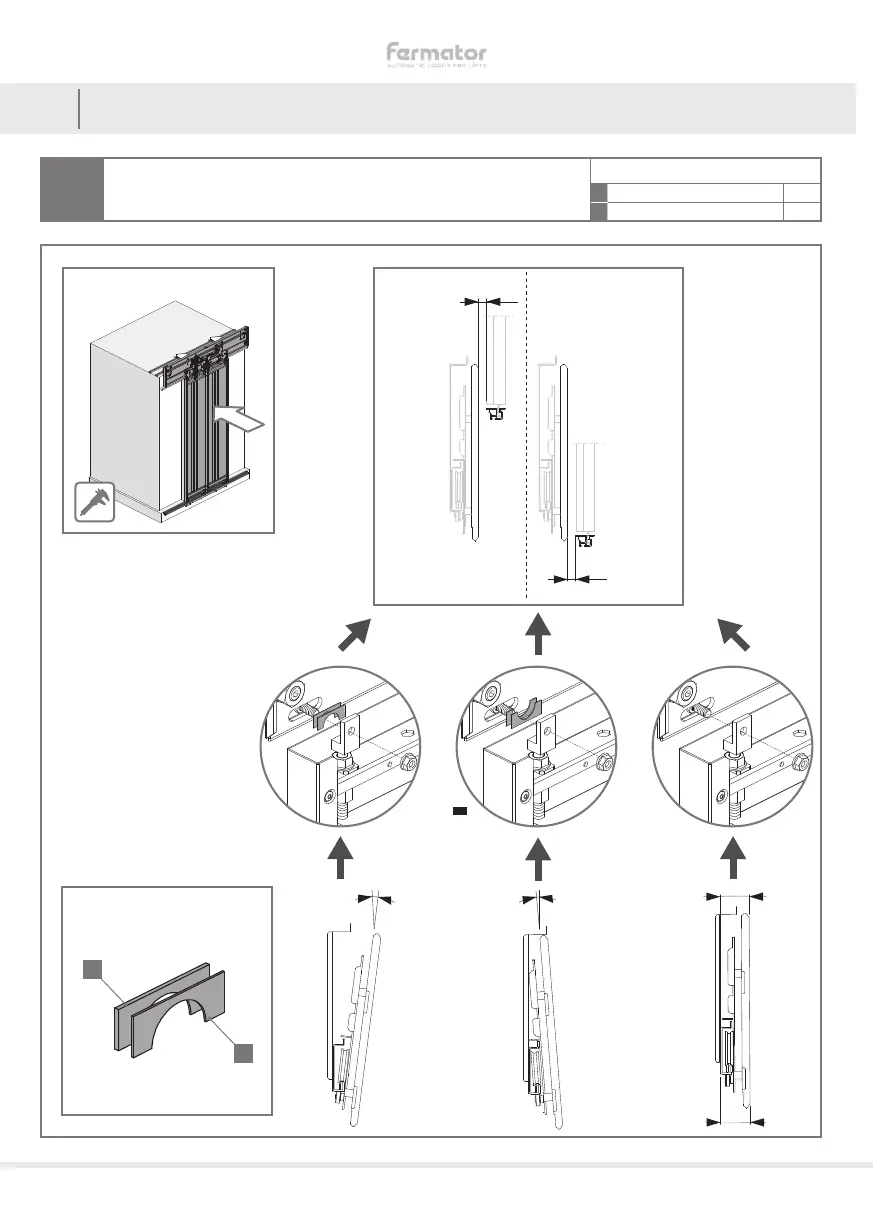

2.2 ASSEMBLY INSTRUCTIONS
2 2.2.8.4 COUPLING LATERAL VIEW
2.2.8.4.2
It is also necessary to check the verticality (plumb) of the CDL / clutch. Use
the shims provided for the corrections required.
ACCESSORIES PER PANEL
N Shim thickness 0,8 mm x2
O Shim thickness 0,5 mm x4
AIM
