-36-
•Max.4 door stations can be connected to the system.
•Ensure to set the correct address for each door station, Refer to Page 41 for more details
about the address setting of door stations.

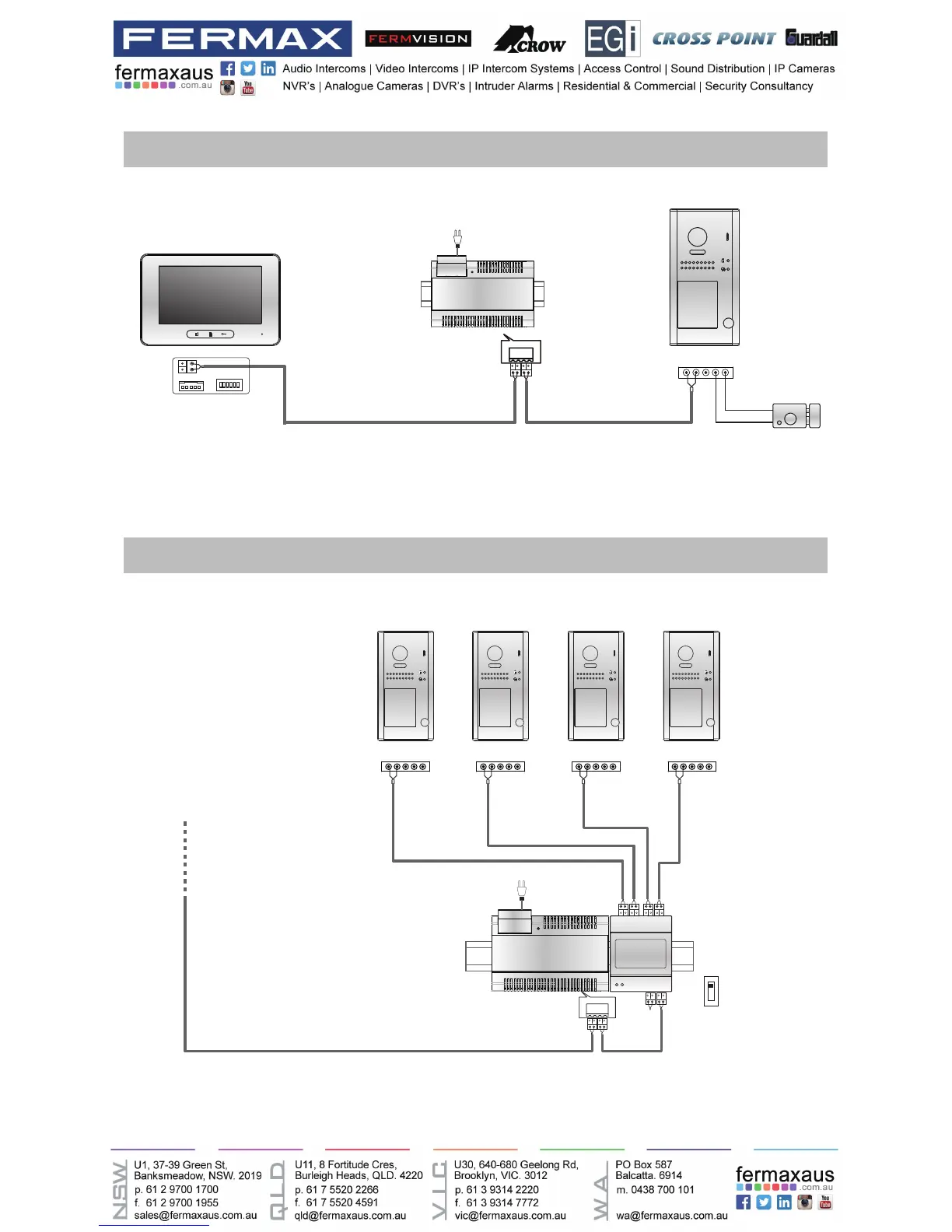

Connecting Basic One-to-one
Connecting Multi Door Stations
BUS(IM) BUS(DS)
-
+
L1 L2 PL S+ S-
ID=0
Code=0, DIP6=on
1 2 3 4 5 6
ON DIP
L2
L1
DIP Switches
FVI-6017PC6
AC~
100~240VAC
100~240VAC
FVI-6011DBC4A
A B C D
OFF
ON
Impedance
switch
BUS(IM) BUS(DS)
FVI-6017PC6
AC~
ID=0
1
st
door station
ID=1
2
nd
door station
ID=2
3
rd
door station
ID=3
4
th
door station
L1 L2 PL S+ S- L1 L2 PL S+ S- L1 L2 PL S+ S- L1 L2 PL S+ S-
To monitors
•The door station is also compatible with other monitors which are provided by our company.
