-37-

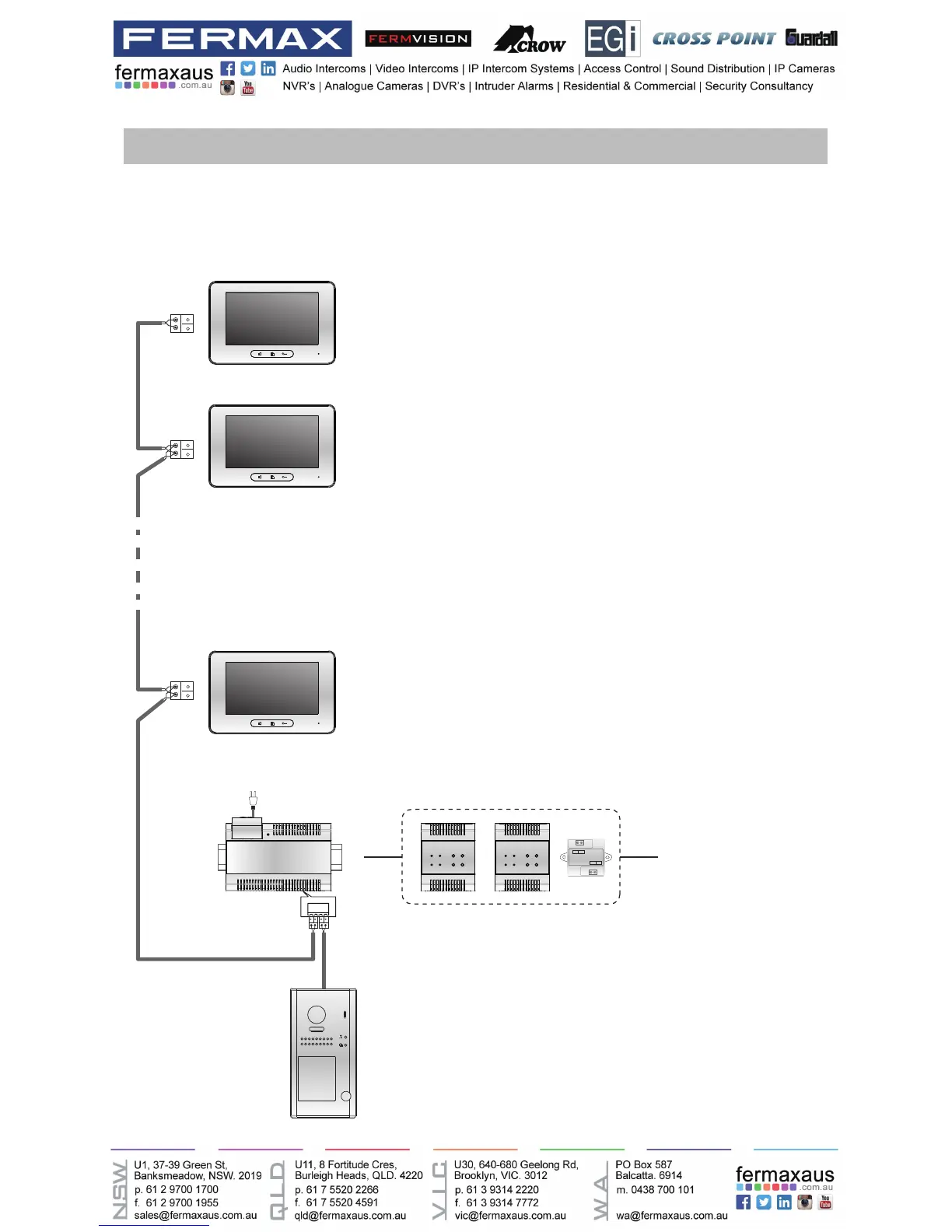

Basic IN-OUT Wiring
Connecting Multi Monitors
• The door station is also compatible with
other monitors which are provided by our
company.
• Distributor is unnecessary in full audio
system, and IN-OUT mode is recom-
mended.
• For the last monitor connected to the
system, DIP6 should set to ON.
ID=0
Code=0, DIP6=off
Code=14, DIP6=off
Code=15, DIP6=on
BUS(IM) BUS(DS)
FVI-6017PC6
AC~
100~240VAC
Optional functional module
QSW image quad splitter module
SCU camera module(max.4)
CCU camera converter
SCUQSW
DT-CCU
Camera
BUS
GND VIDEO
BUS BUS
2-WIRE SYSTEM
GND
VEDIO
