-44-

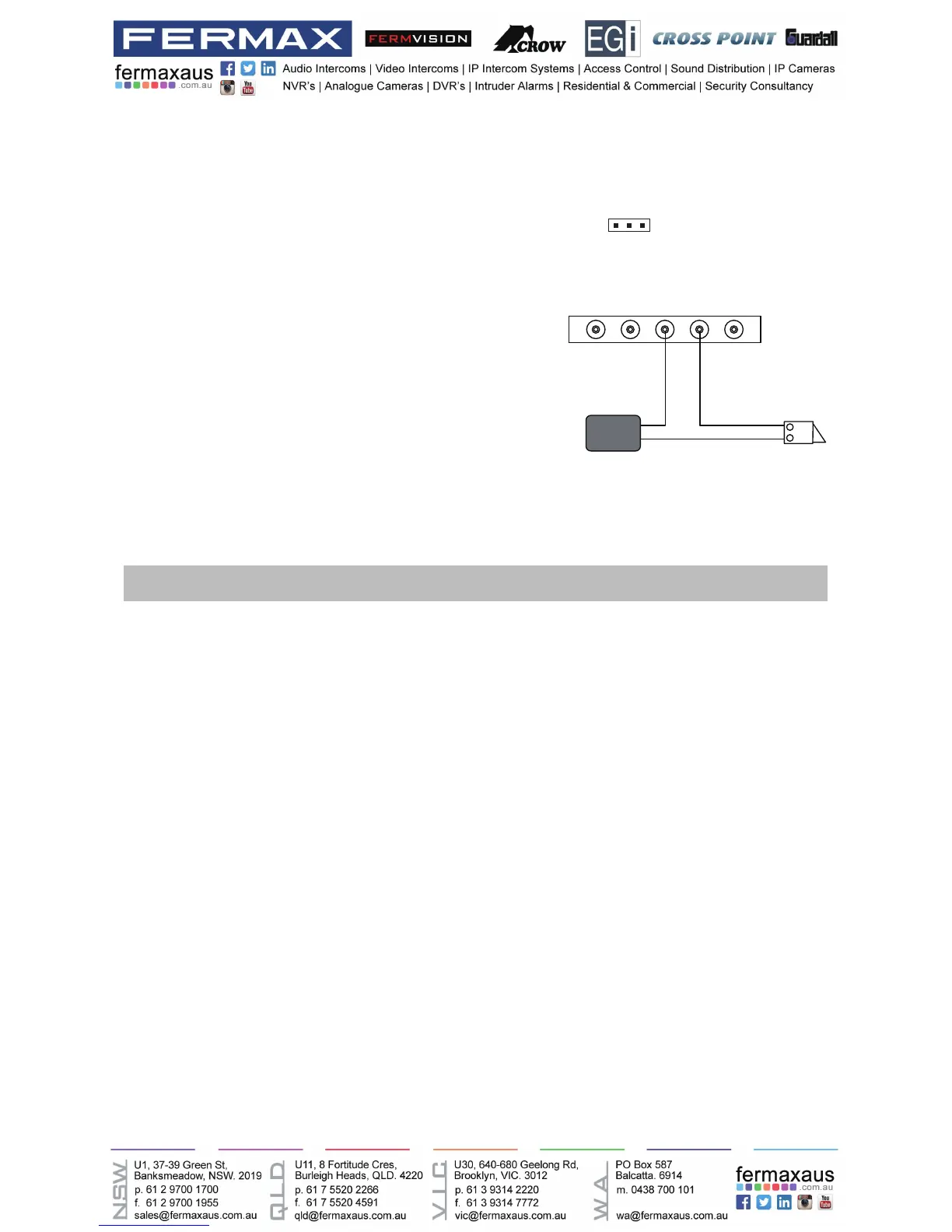

Door Lock Controlled with Dry Contact
1.The external power supply must be used according
to the lock.
2.The inside relay contact is restricted to 230Vac 1A or
24Vdc 1A.
3.The jumper must be taken off before connecting.
4.Setup the
Unlock Mode
according to different lock
types.
• Power-on-to-unlock type:Unlock
Mode=0 (by default)
• Power-off-to-unlock type:Unlock
Mode=1
Take off the jumper
1 2 3
L1 L2 PL S+ S-
LOCK
POWER
SUPPLY
* DT-RLC relay actuator is needed for 2nd lock connection.
Specification
Power supply: DC 24V
Power consumption: Standby 0.27W; Working 7W(Indoor Station)
Standby 0.8W; Working 3W(Outdoor Station)
Camera: Color CMOS, 520TVL
1/4’ camera,105
0
wide angle
Unlocking Time: 1~99s
Lock Power supply: 12Vdc, 280mA(Internal Power)
Number of relay circuits: 2(the second lock need external device to support)
Screen: 7 Inch digital color TFT
Display Resolutions: 800*3(R, G, B) x 480 pixels
Videosignal: 1Vp-p,75Ω,CCIRstandard
Mounting: Surface wall-mount
Material: Zinc alloy panel
Protection: IP54
Wiring: 2 wires, non-polarity
Dimension: 139(H)×212(W)×15(D)mm(FVI-6013MEM)
176(H)×90(W)×27(D)mm(FVI-6022C)
