Fermax FVI-6013MEM - Star Topology Wiring; Star Topology Wiring Diagram and Cable Distances

Fermax FVI-6013MEM
48 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
-46-
B
A
C
2
2
FVI-6011DBC4A
FVI-6017PC6
Cable and distance(unit:m)
Cable Usage A B C
Twisted cable 2x0.75mm
2
60 60 30
Twisted cable 2x1mm
2
80 80 40

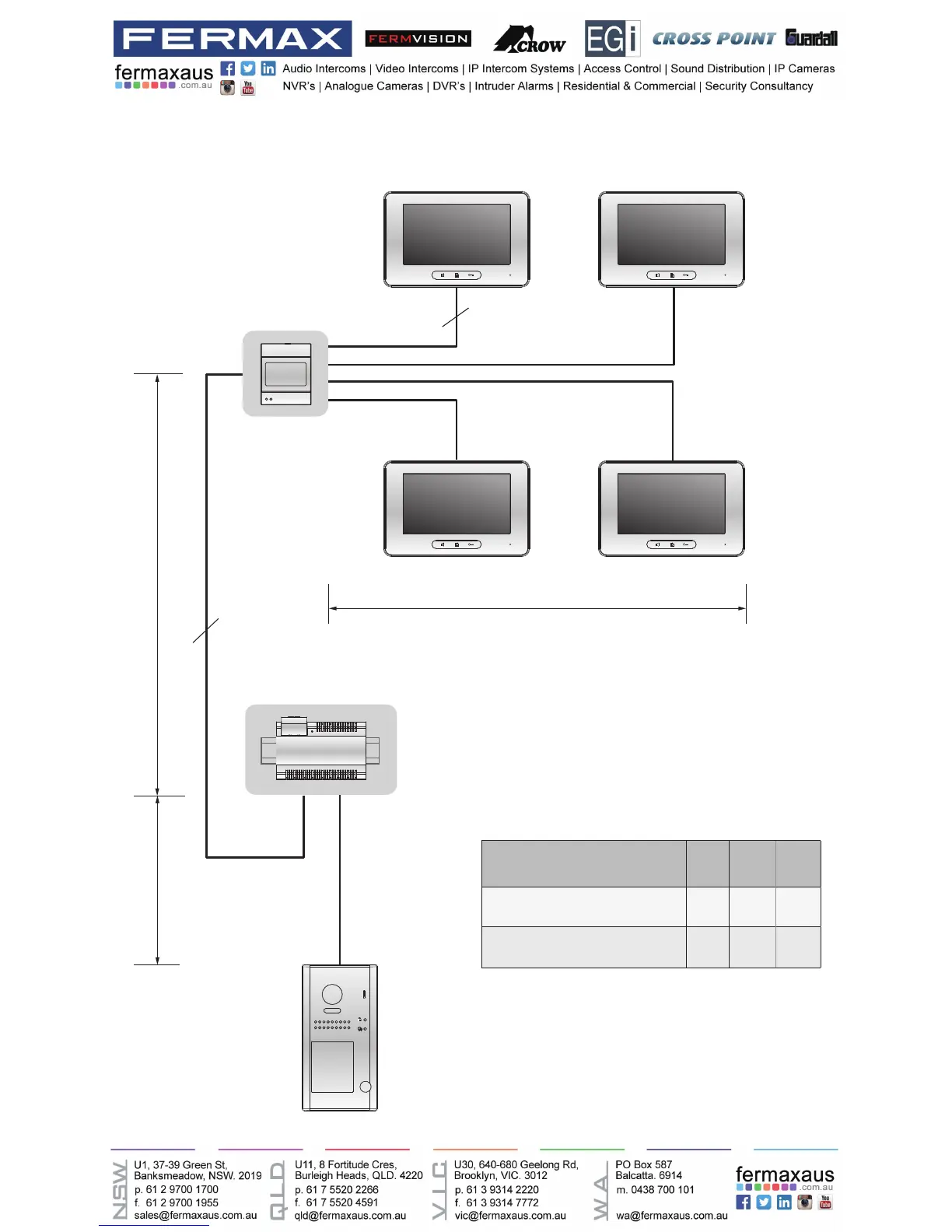

Star Topology Wiring Mode With FVI-6011DBC4A
