Festo CECC-X-M1 series User Manual

Festo CECC-X-M1-... 2017-09a English
14

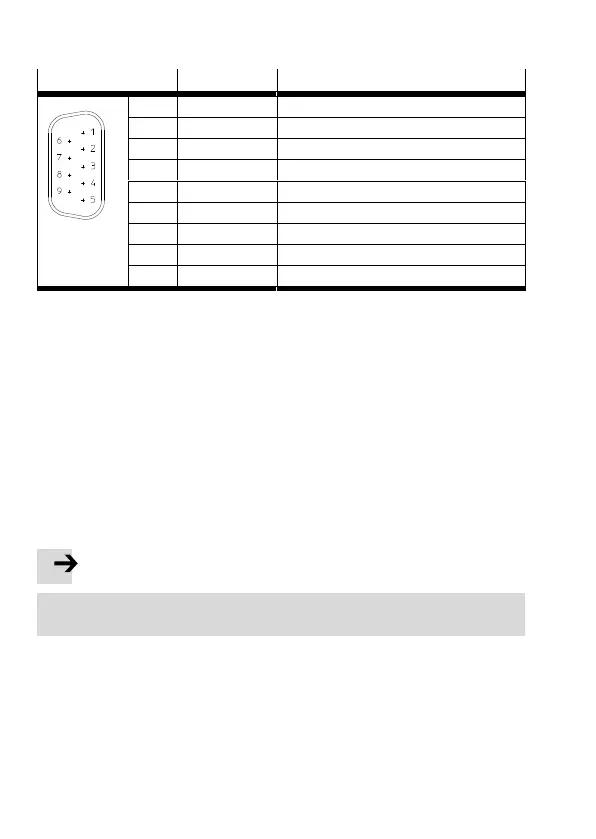

9.2 CANopen interface CAN1 [X6]
Pin Port Comments
1 – Not connected
2 CAN1_L
1)
CANBus signal1 (dominant low)
3 CAN_GND CAN Ground
4 – Not connected
5 CAN_SHLD Connection to functional earth
6 CAN_GND CAN Ground (optional)
7 CAN1_H
1)
CANBus signal1 (dominant high)
8 – Not connected
9 – Not connected
1) For connection of the device at the end of the line: Connect Pin2 and Pin7 via a resistor.
A corresponding plug with resistor (120 Ω/0.25 W) can be found in Festo's accessor
iesè www.festo.com/catalogue
Fig. 11
9.3 USB interfaces [X7, X9]
The USB interfaces è Fig. 1 2 are compatible with the USB 3.0 and
USB2.0 standards. They are suitable for USB plug type A.
The following functions are supported (cable length 3 m):
– General data storage
– Connection of a camera
– Connection of hardware extensions
Note
Damage to the product.
 Only use USB components with a current consumption 0.9 A.
Please consult your regional Festo contact if you have any queries re
garding the extensions.
