6 Installation
Note
Damage to the product from incorrect handling.
Never pull out or plug in the plug connectors and inter
faces when powered.
Observe the handling specifications for electrostatically
sensitive devices.

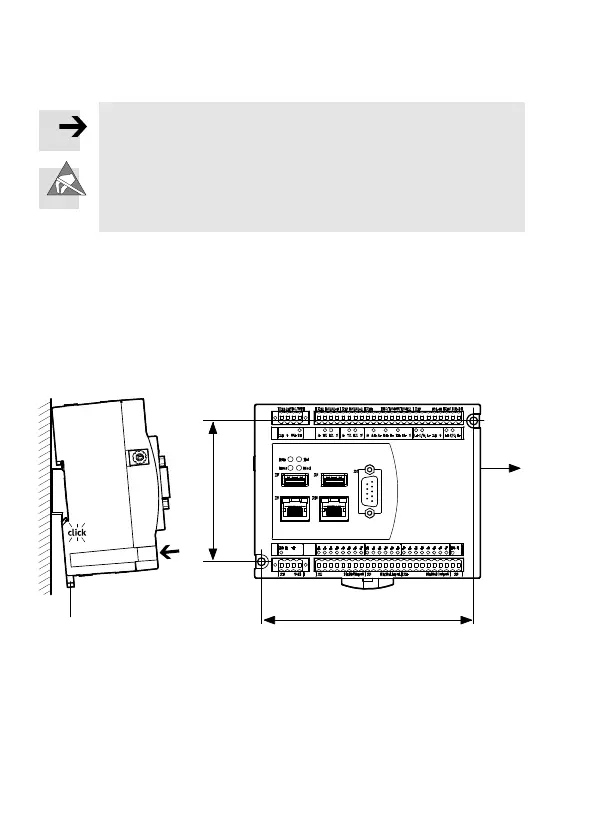

The product can be mounted on a H-rail or on a flat surface in any
mounting position.
Ensure sufficient free space:
– above and below the product for connecting cables
– to the right of the product for cold-air entry and access to the Mi
croSD card slot.
81
mm
122.2 mm
bJ
aI
20 mm
bA
aI Clip
bA Distance
bJ Mounting holes
Fig. 2
