2. Commissioning
2-15
Festo P.BE-CP-FB13-E-EN en 0112e
2.2.2 COM PROFIBUS 3.x
Selecting the station
123
4

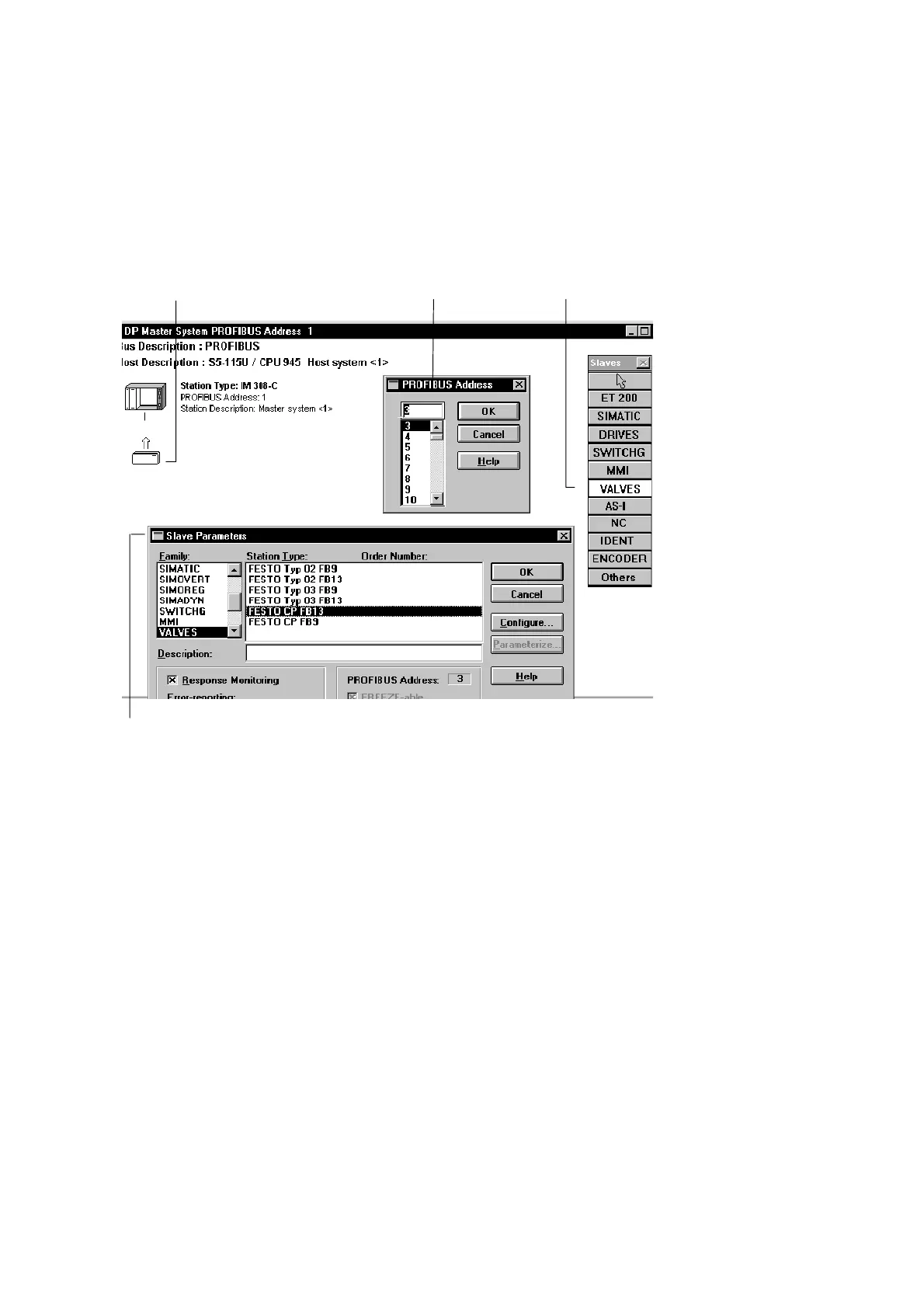

Fig. 2/6: Station selection with COM PROFIBUS 3.x (the masks shown are not all visible
simultaneously, see text)
1. Use the left-hand mouse key to mark the slave type
“VALVES” in the slave catalogue 1.
The slave type “VALVES” will appear if you have copied
the device master file correctly (see step 1 of the prepara-
tions).
