Festo CPX-FB11 - Page 76

2. Commissioning
2−30
Festo P.BE−CPX−FB11−EN en 0503b
The physical output data are transmitted with the communi
cation connection Polled" or Change of State." In this
example Polled":

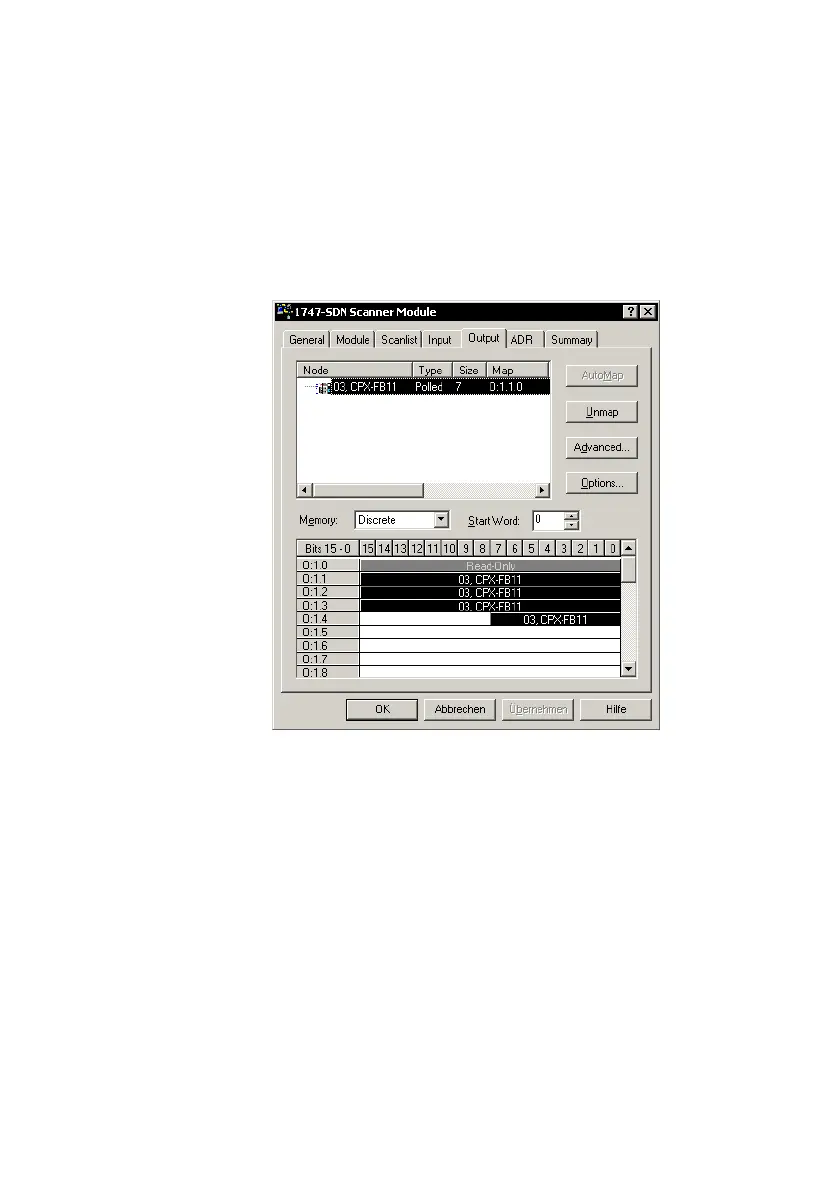

Fig.2/9: Address assignment of the output (example)
Load the configuration into the scanner
Finally, load the configuration data into the scanner. Further
information can be found in the documentation for the
scanner.
