Example 2: CPX terminal with CP interface

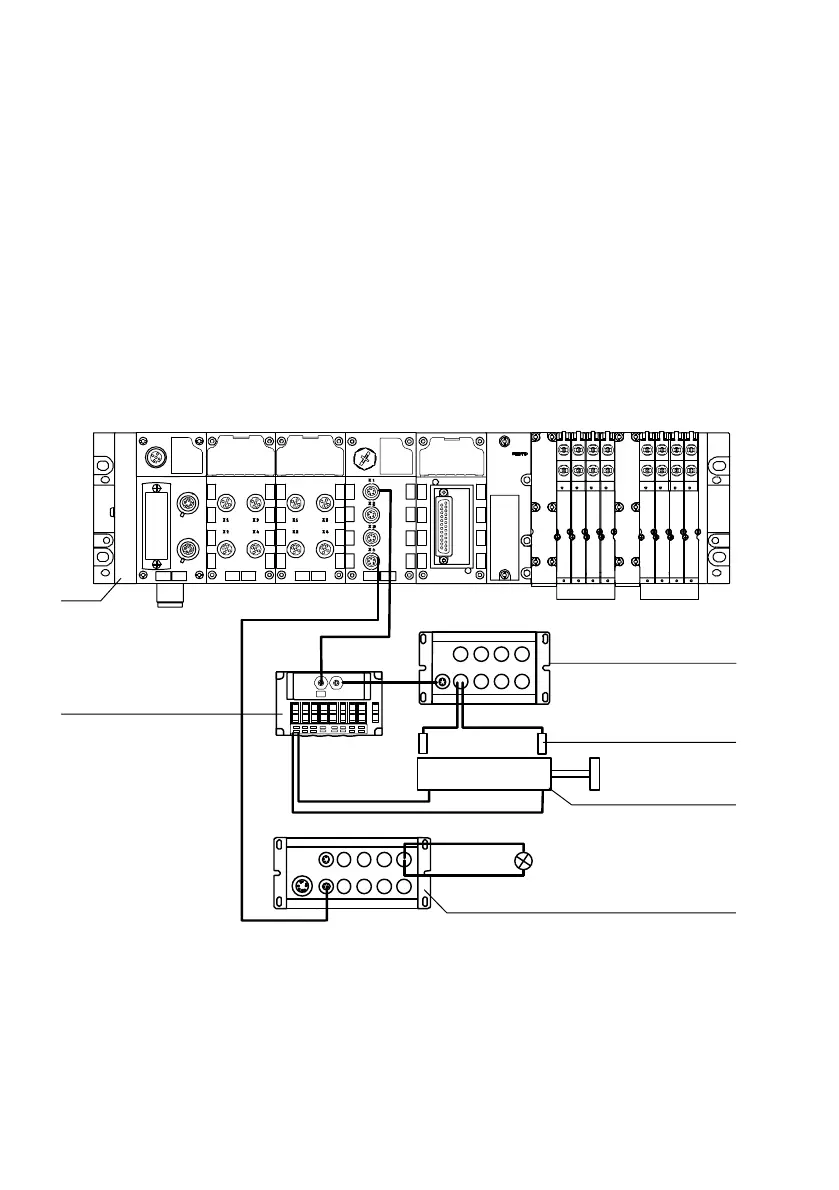

Fig.2/2 shows as an example a CPX terminal with
CPinterface and the following setting:
 Status bits and I/O diagnostic interface deactivated
The address assignment for this example terminal
(inFig.2/2) is shown in Tab.2/10.
123 4 5 6Module no.: 0
8 O8 O
1
2
3
4
5
6
8DI 4DO 8DI 8DO
1 Bus node CPX−FB38
2 CPV valve terminal (16 O)
on the CP interface (string1)
3 CP input module (16DI)
4 Sensor
5 Cylinders
6 CP output module (16DO)
on the CP interface (string 4)
Fig.2/2: Example terminal 2 (with CP interface)
