2. Commissioning
2−18
Festo P.BE−CPX−FB38−EN en 0804NH
12
8DI 8DI 4DO 8DI 2AO
3
8DO
8 O
Module no.: 0123456
1 Bus node CPX−FB38 (with status bits)
2 VTSA pneumatic interface
(set to 1 Ū 8 valve coils)
3 VTSA pneumatics (type 44)

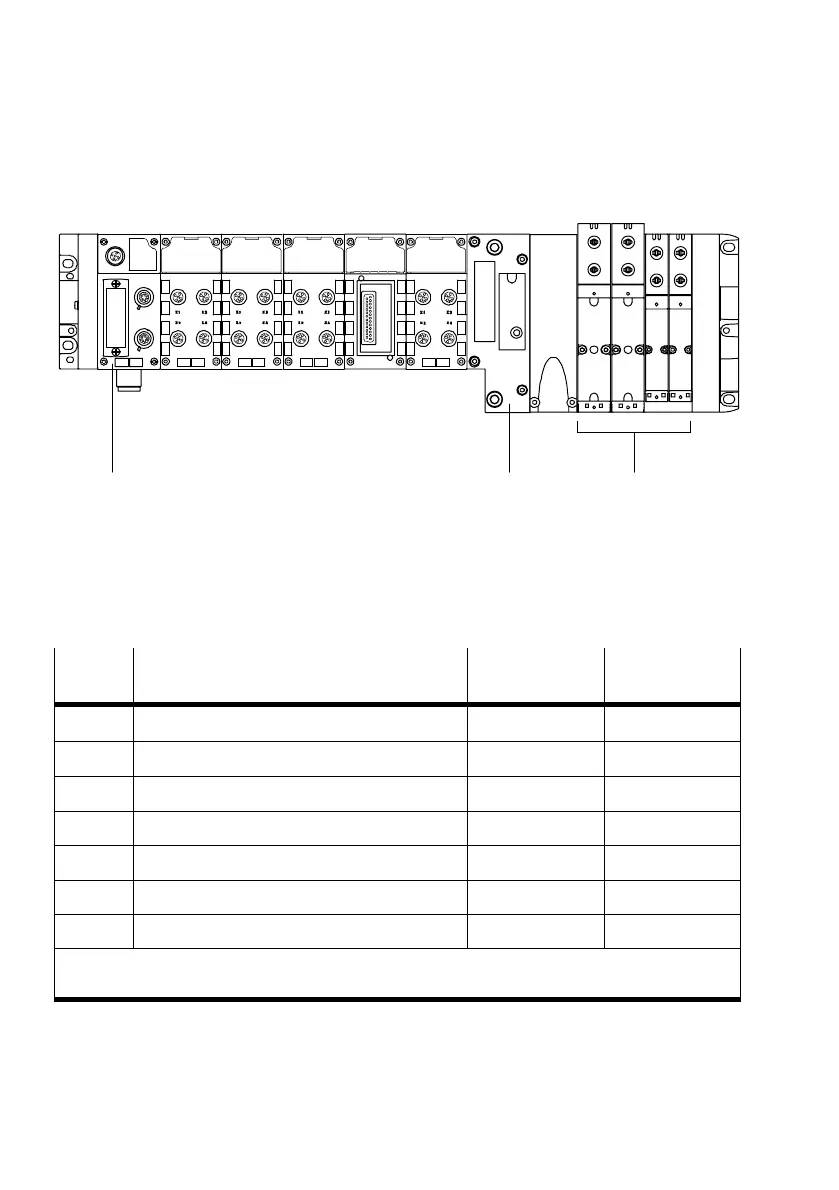

Fig.2/3: Example terminal 3 (with analogue module and VTSA pneumatics)
Module
no.
Module Input address Output address
0 Bus node CPX−FB38 (with status bits) I0 Ū I15
1)

1 Digital 8−input module CPX−8DE I16 Ū I23 
2 Digital 8−input module CPX−8DE I24 Ū I31 
3 Digital 4−output module CPX−4DA  O32 Ū O39
2)
4 Digital multi−I/O module CPX−8DE−8DA I32 Ū I39 O40 Ū O47
5 Analogue 2−output module CPX−2AA  O0 Ū O31
6 VTSA pneumatic interface set to 1Ū8 valve coils  O48 Ū O55
1)
16 bits assigned, 8 bits used
2)
8 bits assigned, 4 bits used
Tab.2/11: Addressing the example terminal 3 (see Fig.2/3)
