2. Commissioning
2−20
Festo P.BE−CPX−FB38−EN en 0804NH
12
16DI 8DI 4DO 8DI 2AO
3
8DO
16 O
Module no.: 0123456
1 Modified: Status bits deactivated
2 Modified: 8DI module replaced
by 16DI module
3 Modified: Pneumatic interface
(now set with DIL switch to
1Ū16valve coils)

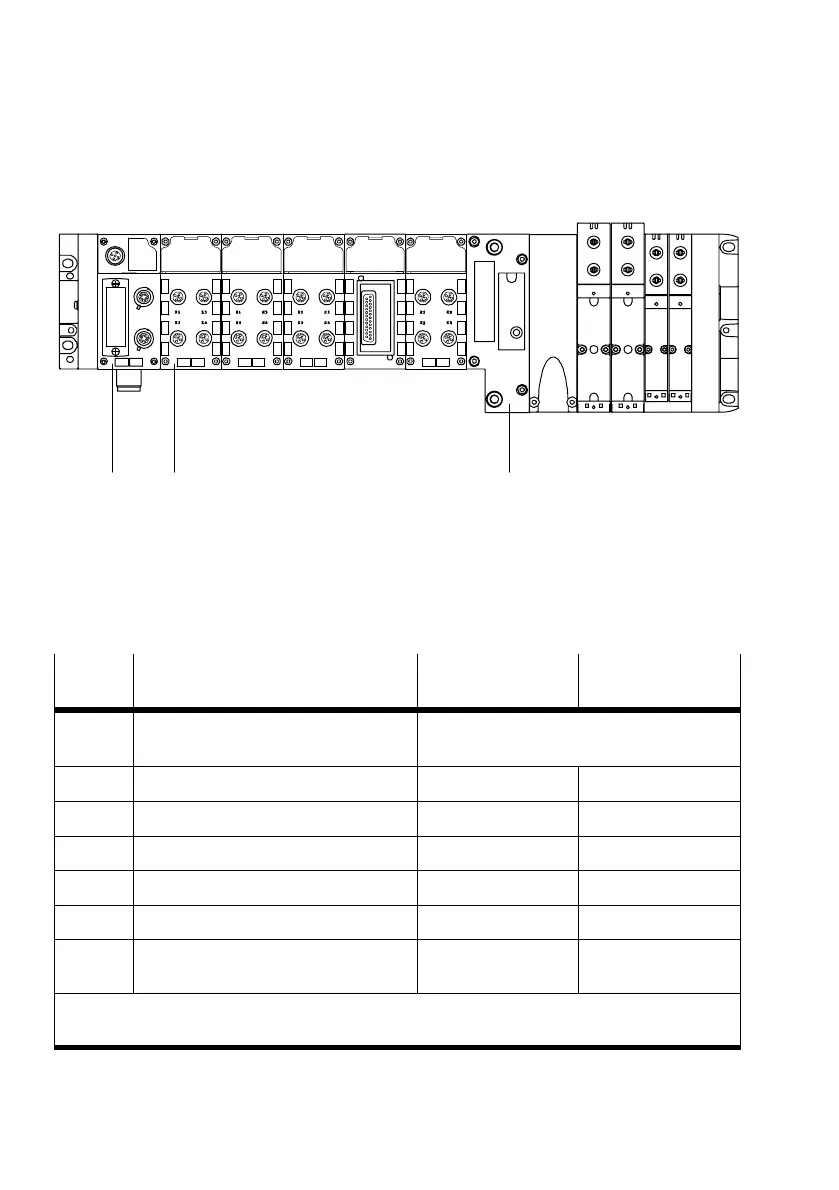

Fig.2/4: Example terminal 3 after extension/conversion (compare with Fig.2/3)
Module
no.
Module Input address Output address
0 Field bus node CPX−FB38
with deactivated status bits
Depends on DIL switch settings (see Tab.1/2)
1 Digital 16−input module CPX−16DE I0 Ū I15 
2 Digital 8−input module CPX−8DE I16 Ū I23 
3 Digital 4−output module CPX−4DA  O32 Ū O39
1)
4 Digital multi−I/O module CPX−8DE−8DA I24 Ū I31 O40 Ū O47
5 Analogue 2−output module CPX−2AA  O0 Ū O31
6 VTSA pneumatic interface with
DILswitch set to 1Ū16 valve coils
 O48 Ū O63
bold = changed module or changed setting
1)
8 bits occupied, 4 bits used
Tab.2/12: Addressing the example terminal 3 after extension/conversion (see Fig.2/4)
