6 Fitting
Fitting mechanical components
S Avoid damaging the band system.
Damage to the band system can cause
leakage and reduce the efficiency of the
DGP(L)−....
S Make sure that the drive is fitted free of
mechanical stress and distortion.
If required, use the profile fastening here
(centre support) type MUP−....
F
F
F
l l

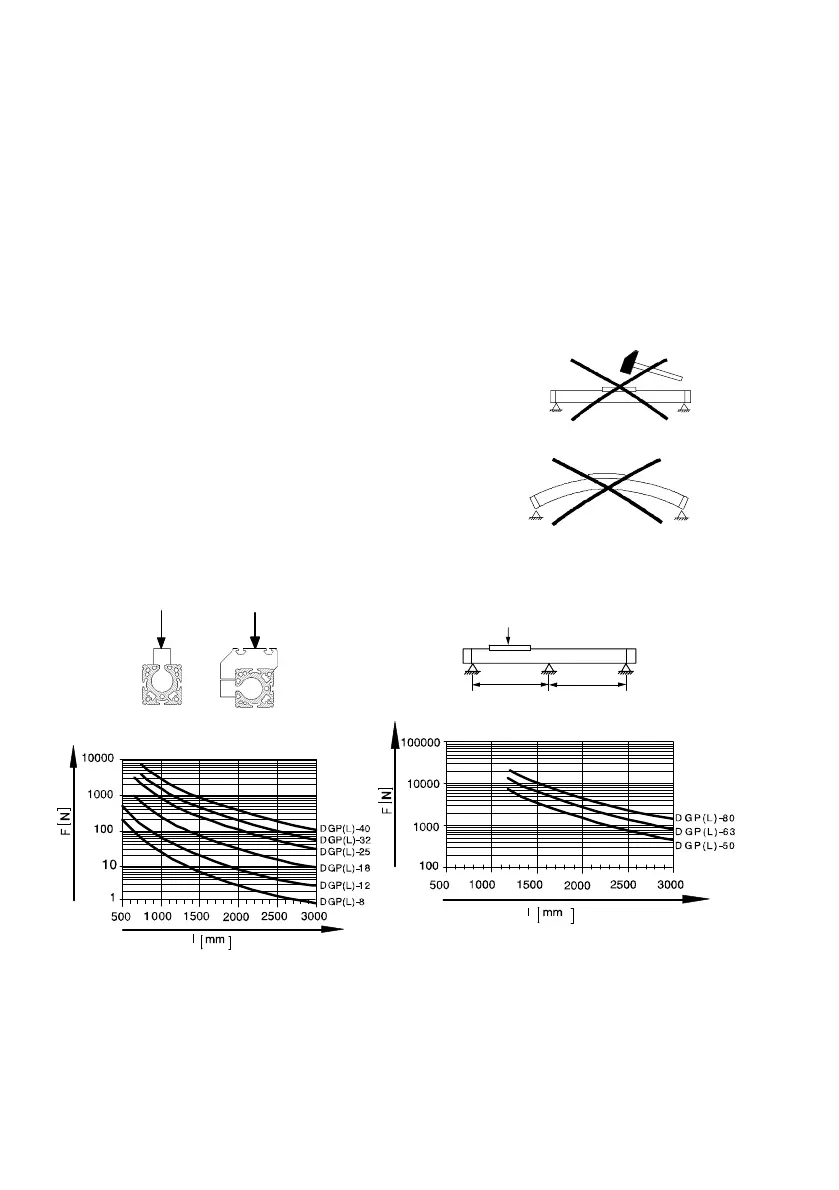

Fig.6: Necessary gaps between supports
Fig.4
Fig.5
