DGP(L)−...−B
Festo DGP(L)−...−B 0609g English
28

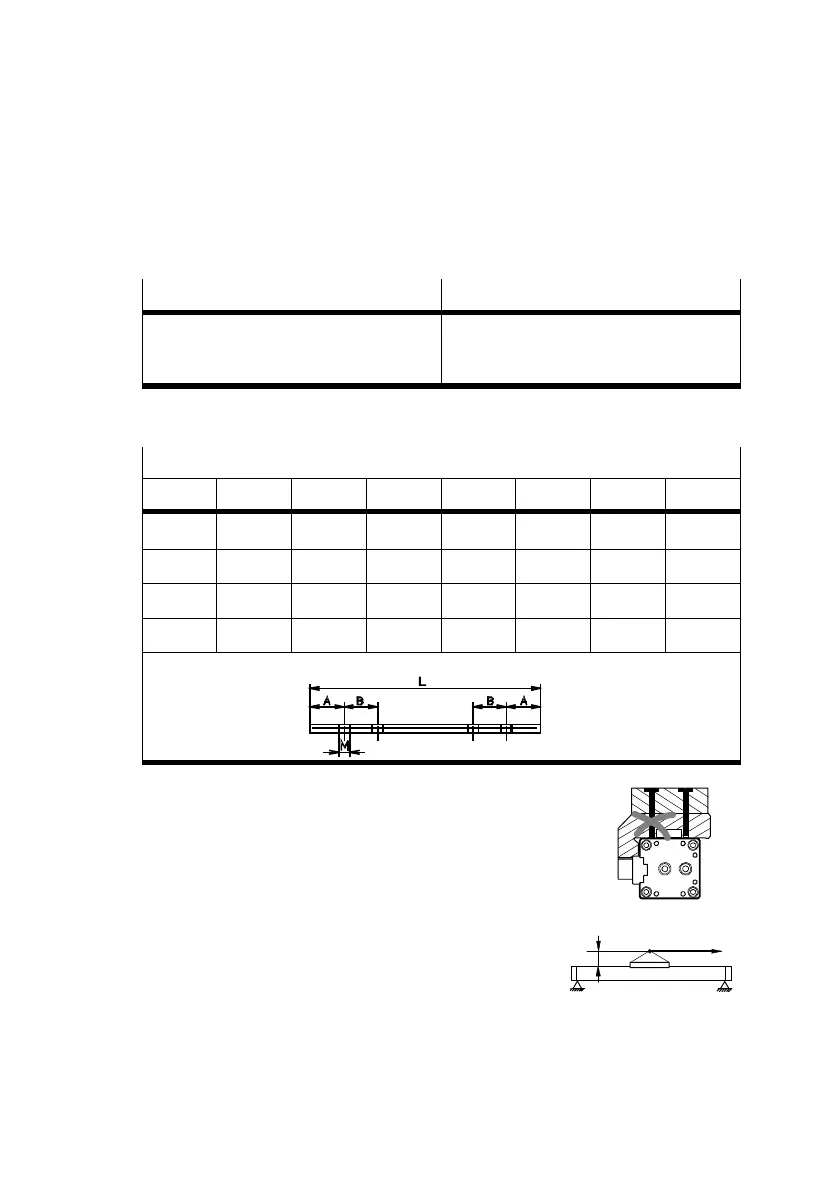

Fastening the work load:
1. Select a fastening method:
DGPL−...
DGP−...
1. Sliding blocks NSTL−... on the slide
2. Threaded holes and centring elements
(see Accessories") on the slide
3. Through holes and threaded holes in
the driver (see Fig. 1)
Fig.14: Methods of fastening the work load
Dimensions of the sliding blocks NSTL−... [mm]
j 8...18 25 32 40 50 63 80
L  100 128 166 199 229 319
A  13 14 25 24 30 30
B  15 15 20 20 35 35
M  M5 M5 M5 M8 M8 M8
Fig.15
If fastening method 2 is used, the screws
must be shorter than the threaded hole.
2. Place the work load so that the tilting
torque of force F parallel to the movement
axis and lever arm a" remains low.
Fig.16
Fig.17
a
F
