Getting Started with Festo MecLab
Handling Station
Step 8: Assign labels
To link electrical and pneumatic components, the electrical components must be labeled.
This is done the same way as the pneumatic components, i.e. by right-clicking on the compo-
nent and entering the labels in an input window. Labels are necessary for the valve solenoids
and the sensors.

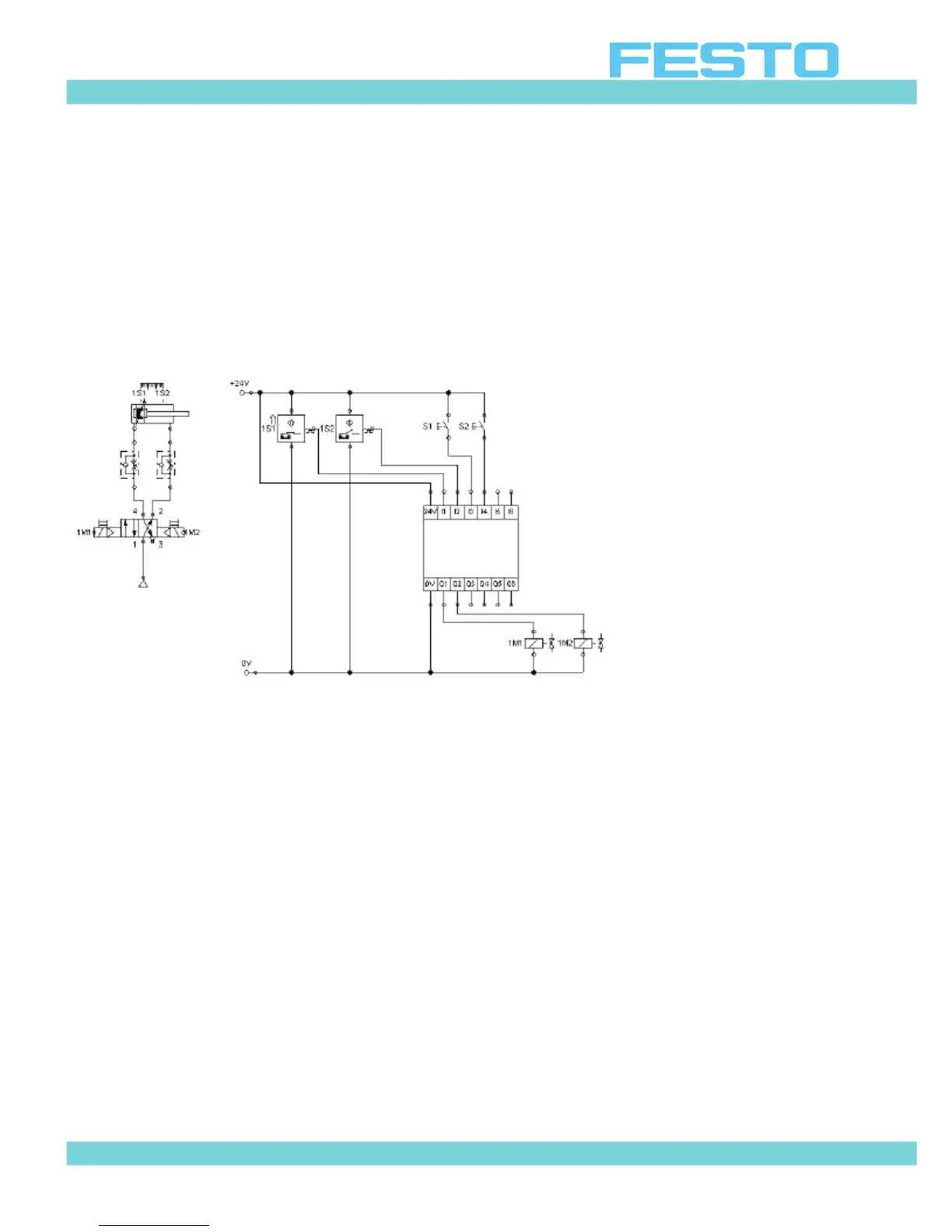

Figure 6.12: Assigning labels for the electrical components
Remember to insert and label two pushbuttons as S1 and S2.
