Getting Started with Festo MecLab
Handling Station
The program can then be built upon to include the other actuators and sensors that are on
the station.
The schematic diagram, the circuit diagram and the logic program form the technical docu-
mentation for the project. They can be supplemented with operating instructions and data
sheets if necessary.

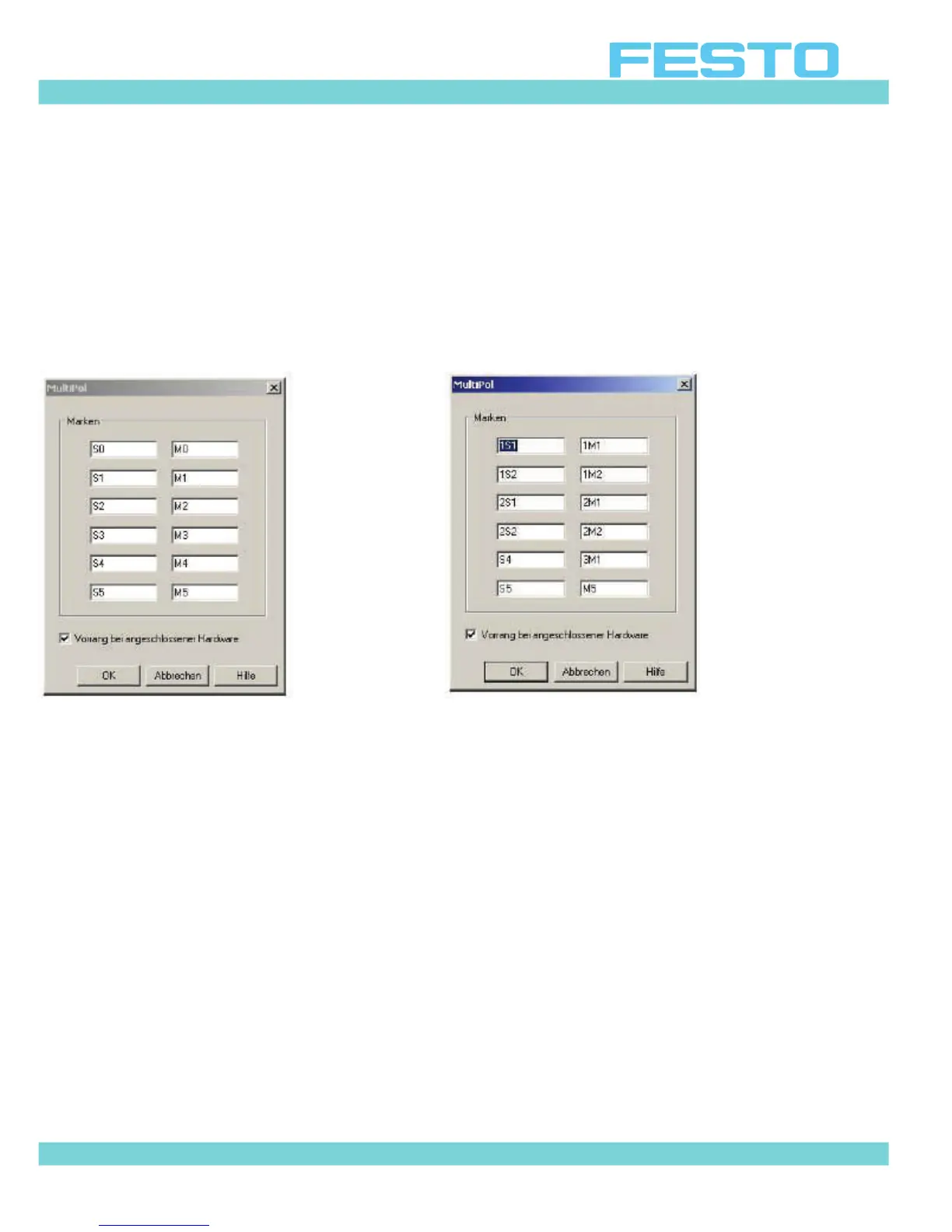

Figure 6.18: Dialog box of the Figure 6.19: Dialog box of the multi-pin plug
multi-pin plug distributor distributor with the labels changed
before the labels are changed
