Fibocom MC610 Series User Manual

Reproduction forbidden without Fibocom Wireless Inc. written authorization - All rights reserved.
FIBOCOM MC610 Series Hardware Guide 13/70
l RF PA
l RF filter
l Antenna

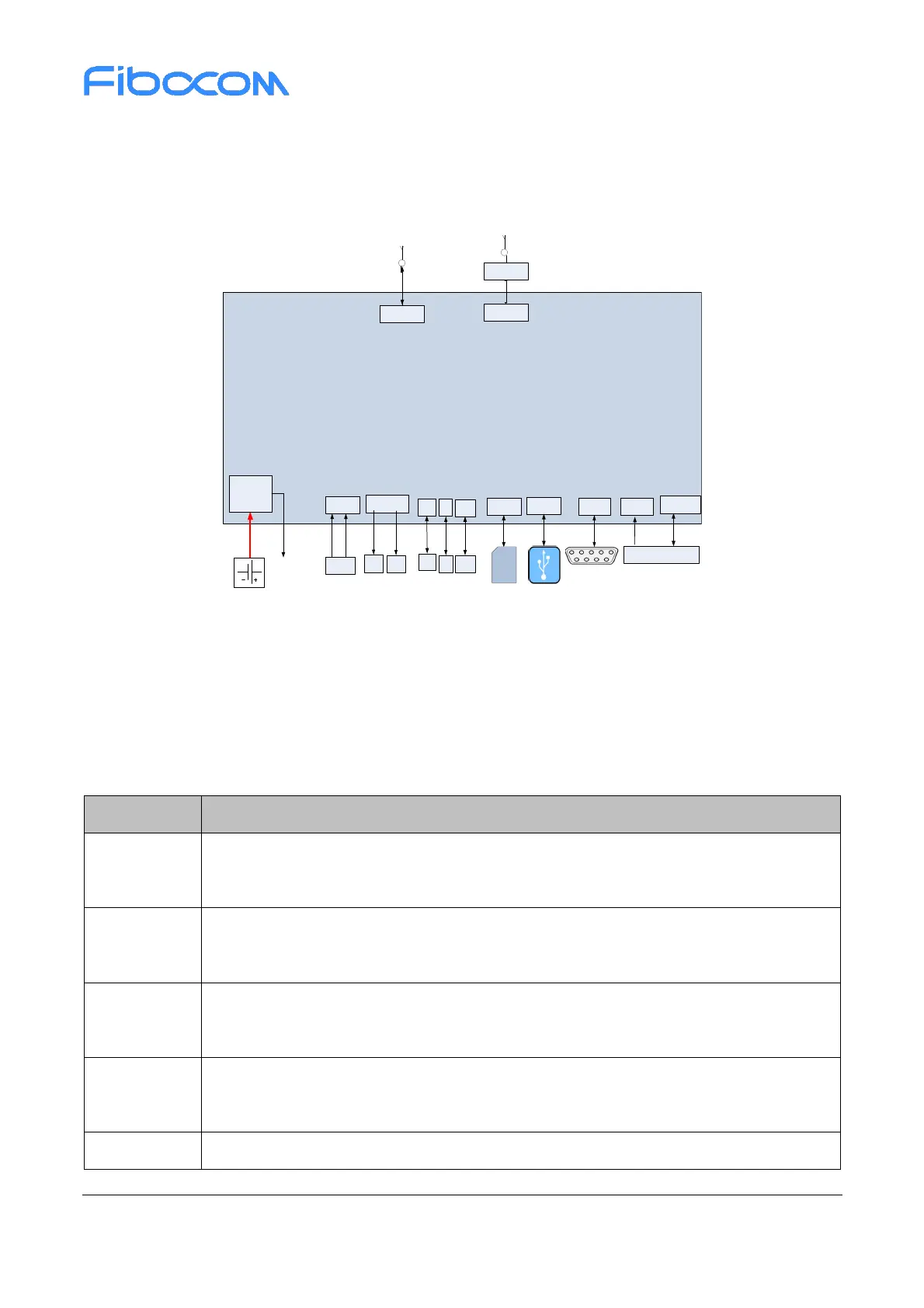

Figure 2-1 Hardware diagram
2.4 Operating Mode
Table 2-2 Operating mode
Mode
Description
Idle
The module is registered on the network, in a standby mode, without data
transmission.
Talk/Data
The module is connected to the network, in a working state, with data transmission in
the voice call.
Airplane
The RF part of the module does not work, only the baseband part works, which is
equivalent to the function of ordinary MCU.
Sleep
In this mode, the module's power consumption will be reduced to a very low level, but
the module can still receive paging, SMS, phone calls and TCP/UDP data.
Power off
Power off mode, PMU stops supplying power to the baseband and RF parts, software
Module
SIM
USB
Power
Supply
VI O_1V8
ON/OFF#
RESET#
Control
EINT
Indicator
Host application
UART
Main ANT
Main ANT
SI M
Car d
SPI
FLash
SPK
SPK
GPIO
GPIO
I2C/M
IPI
CAM
LCD
WIFI ANT
Filter
WIFI ANT
