Reproduction forbidden without Fibocom Wireless Inc. written authorization - All rights reserved.
FIBOCOM MC610 Series Hardware Guide 15/70
3 Application Interface
3.1 LCC+LGA Interface
MC610 series modules are packaged with LCC 52PIN+LGA 76PIN, with 128 pins in total.
3.1.1 Pin Distribution

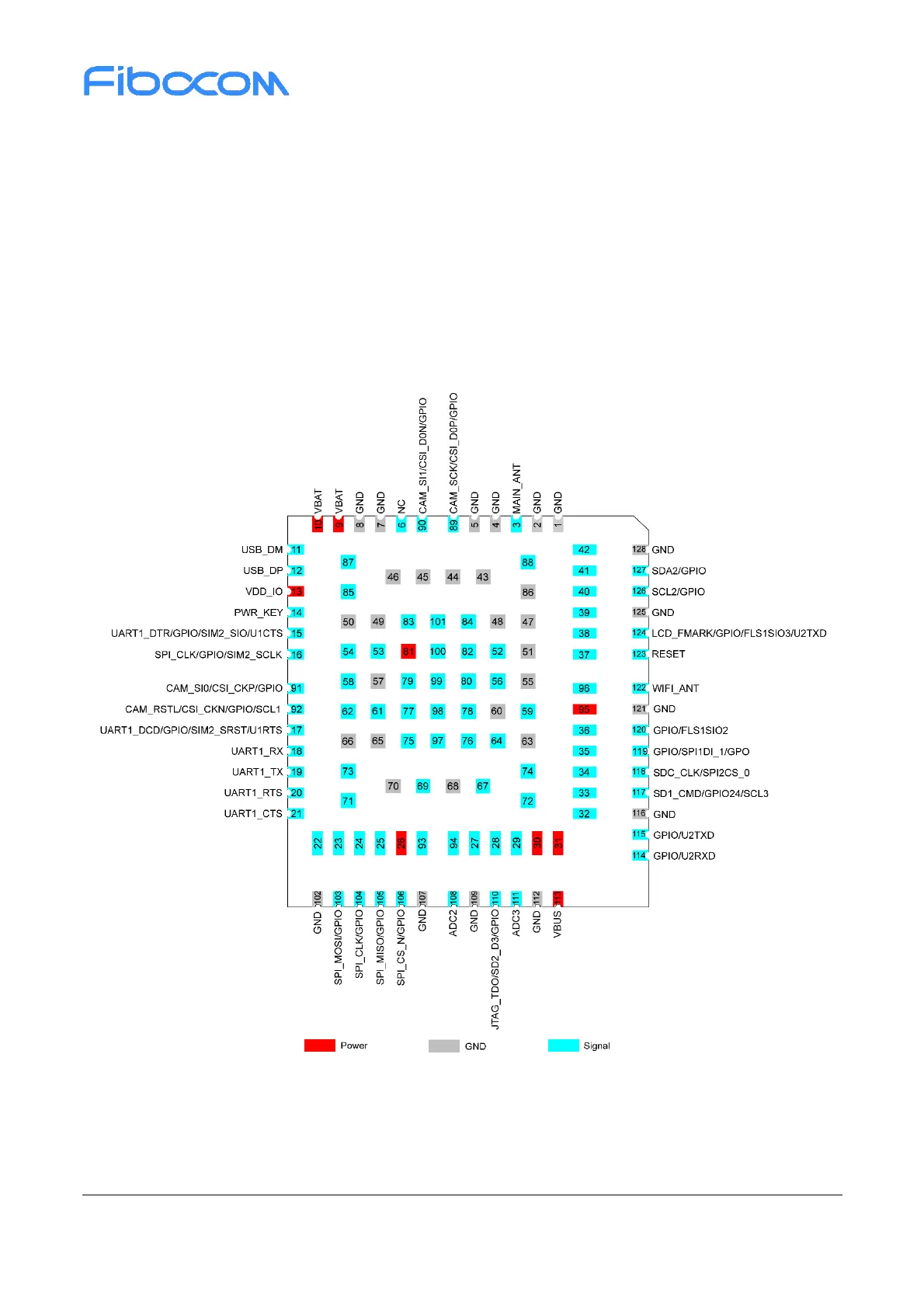

Figure 3-1 Pin distribution (top perspective view)
