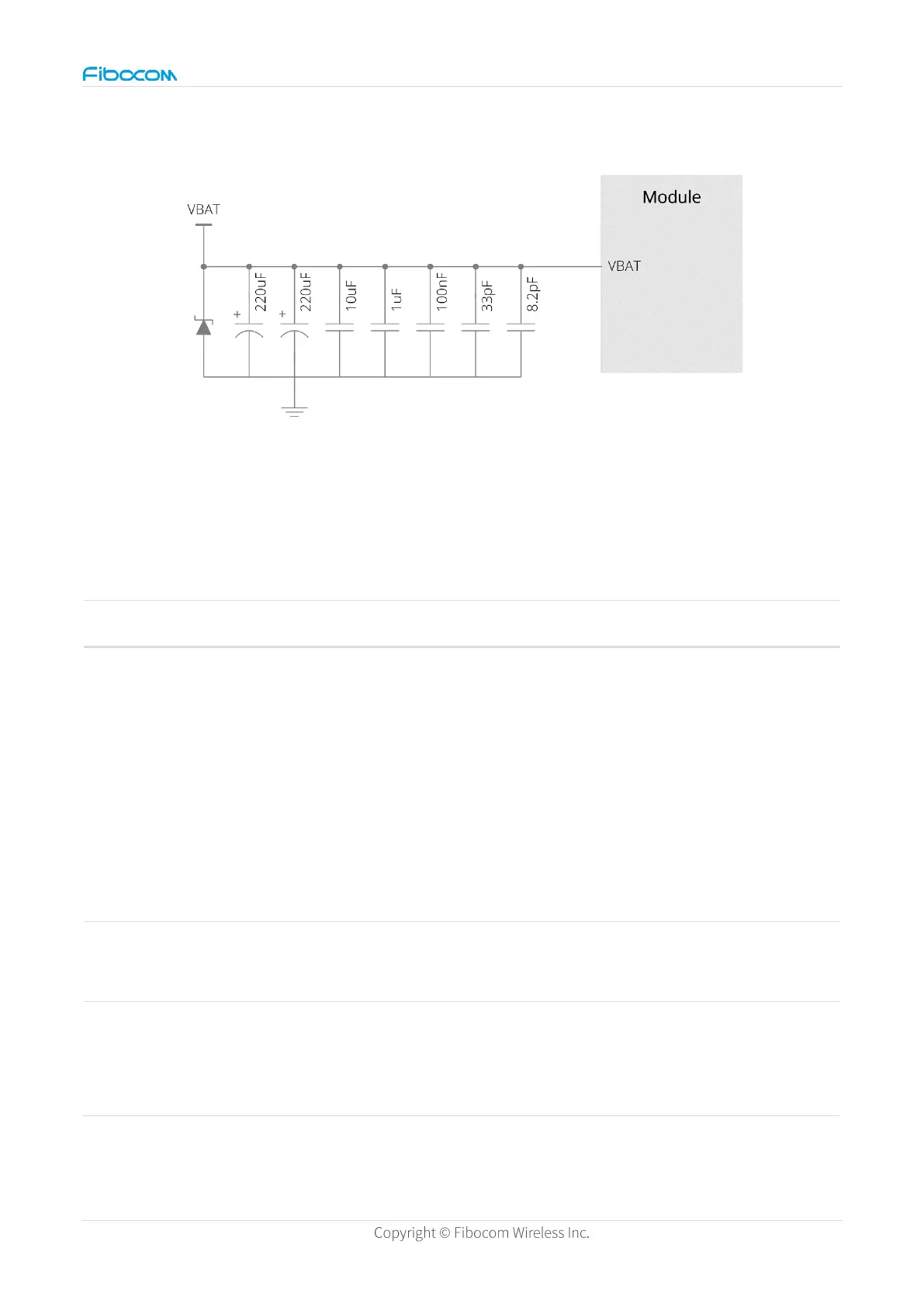

The reference design is shown in the following figure.
Figure 4. Reference power supply design
Design Description
Table 24. Design description
To reduce power fluctuations
during module operation
Use a capacitor with low ESR
220uF x 2, 10uF, 22uF
LDO or DCDC power supply requires
capacitor with a capacitance of no less
than 440uF.
Battery power supply requires
capacitance of 100uF to 220uF.
Filter out interference caused
by clock and digital signals.
Eliminate low-frequency and
intermediate-frequency RF
interference.
