3 Application Interfaces
46
Module
STATUS
4.7K
47K
2.2K
VBAT

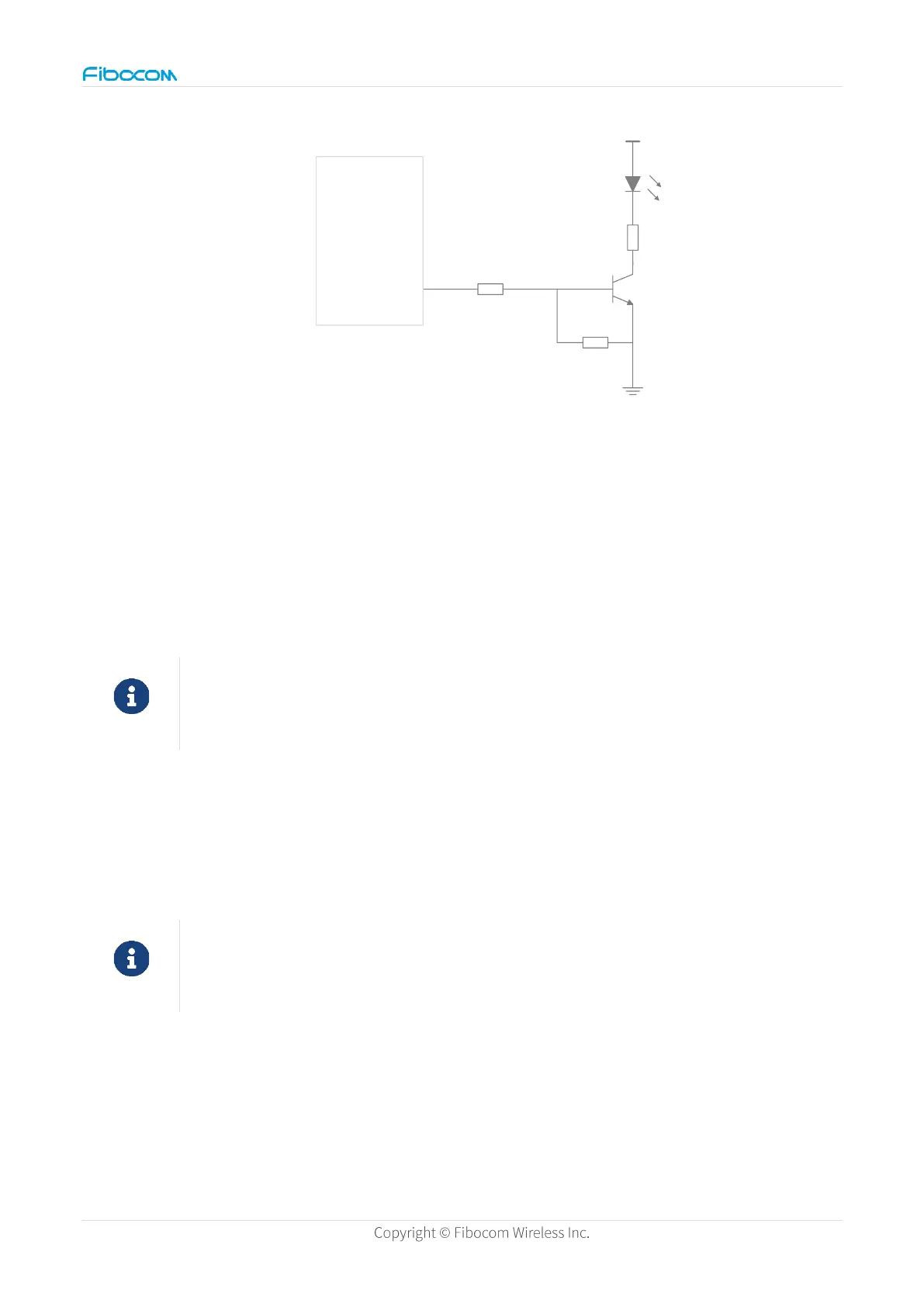

Figure 20. Reference circuit of STATUS operating status
3.3.8 LCD Interface
The MG661 module provides a set of LCD interface. The LCD interface supports a module
with the maximum resolution of 240×320 (QVGA) @30fps LCD display and support 3-wire
9bits and 4-wire 8 bits SPI mode data transmission.
Refer to the reference design for the LCD peripheral circuit design.
3.3.9 Camera Interface
The MG661 module provides a set of CAMERA interface. The camera interface supports up
to 30 W@15fps pixel sensor and supports 1-bit or 2-bit SPI interface.
See the reference design for the design of CAM peripheral circuits.
3.4 Operating Mode
The module supports the following operating modes.
